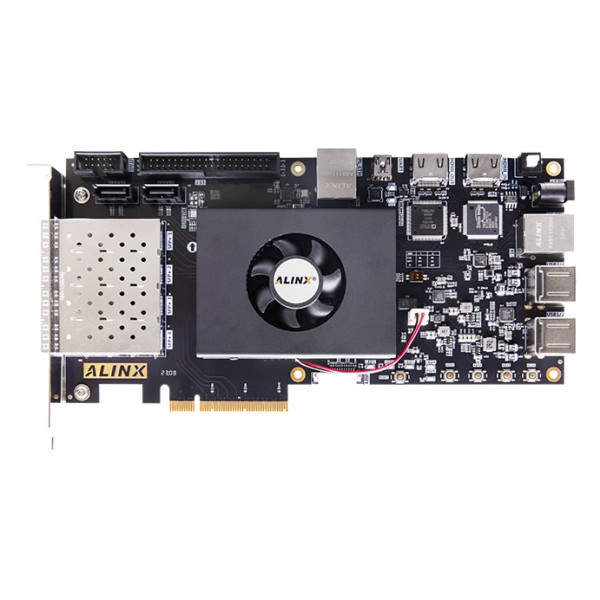

About: Alinx AX7Z045 Development Kit AMD Zynq SoC

Alinx AX7Z045 Development Kit AMD Zynq XC7Z045 SoC is equipped with the AMD Zynq 7000 SoC-series device with fast DDR3 SDRAM, eMMC Flash, QSPI Flash, PCIe, SFP+, HDMI, suitable for Industrial, Medical, Automotive, Video and Image Processing, Control & Instrumentation and Communication.

Features:

2 x Gigabit Ethernet (1 x PS + 1 x PL)
2 x HDMI (1 x HDMI in + 1 x HDMI out)
4 x SFP+ (per line 10Gbps)
4 x USB2.0 (Host)
1 x USB to UART on PS
1 x JTAG
1 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
1 x PCIe® Gen2 ×8 (PL)(AX7Z035B is 1 x PCIe® Gen2 ×4)
1 x Micro SD
LED (1 x PWR + 1 x RXD + 1 x TXD + 4 x PL LED)
KEY (1 x RST + 4 x PL KEY)
12V single supply
Dimensions: 215 x 107 mm form factor
