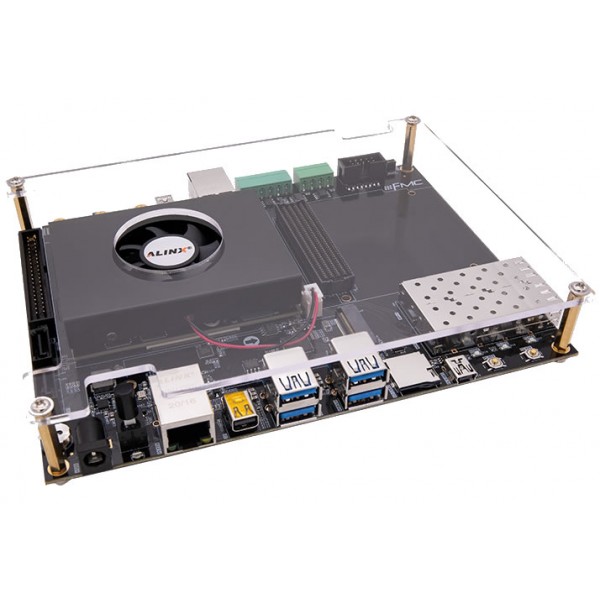

About: Alinx AXU9EGB Development Board Kit AMD Zynq MPSoC
Alinx AXU9EGB Development Board Kit AMD Zynq MPSoC delivers standout performance with fast DDR4 SDRAM, eMMC Flash, QSPI Flash, FMC HPC, DP, M.2.Features:
1 x FMC HPC Connector (36 pairs lvds ios + 8 pairs GTH)
2 x SFP+ Slots (per line 12.5Gbps)
2 x Gigabit Ethernet (1 x PS + 1 x PL)
2 x UART (1 x PS + 1 x PL)(USB to UART)
1 x M.2 Interface on PS
1 x DP Interface on PS
1 x 2 lane MIPI on PL
2 x CAN on PS
2 x RS485 Interfaces (1 x PS + 1 x PL)
2 x USB3.0 on PS + 2 x USB2.0 on PS
1x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
EEPROM: 4-Kbit I2C Serial EEPROM + 1 x Temperature sensor (LM75)
1 x Micro SD
1 x RTC (Real-time clock)
LED (1 x pwr + 1 x done + 1 x PL) + KEY (1 x RST + 1 x PS + 1 x PL)
12V single supply
Dimensions: 180 x 135 mm form factor
Model: AXU9EGB
Alinx AXU9EGB Development Board Kit AMD Zynq MPSoC
- Brands Alinx
- Product Code:AXU9EGB
- Availability:In Stock
-
$1,795.00
