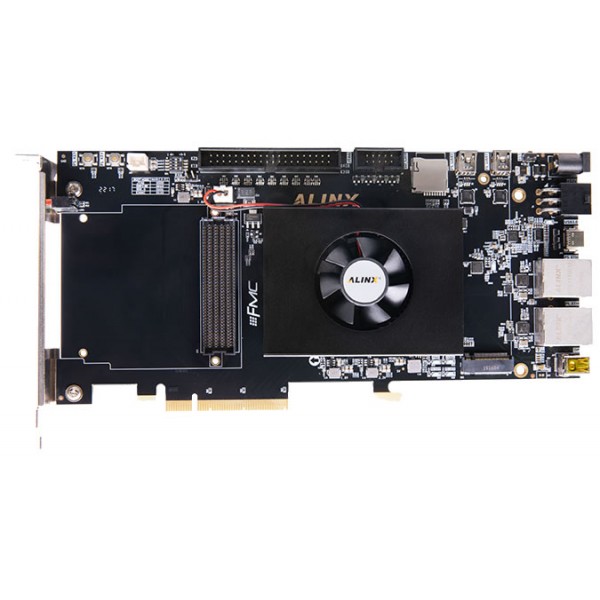

About: Alinx Z7-P Development Board AMD Zynq UltraScale+
Alinx Z7-P Development Board AMD Zynq UltraScale+ offering compatibility with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (PCIe), high-speed storage (M.2) and video applications.Features:
1 x FMC HPC connector (59 pairs lvds ios + 8 pairs GTH)
1 x PCIe® Gen3 ×8
1 x M.2 Card slot on PS
2 x UART (1 x PS + 1 x PL)(USB to UART)
1 x DP Interface on PS
2 x Gigabit Ethernet (1 x PS + 1 x PL)
1 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
LED (1 x pwr + 1 x done + 1 x PL) + KEY (1 x RST + 1 x PS + 1 x PL)
12V single supply
Dimensions: 222 x 106.7 mm form factor
Model: Z7-P
Alinx Z7-P Development Board AMD Zynq UltraScale+
- Brands Alinx
- Product Code:Z7-P
- Availability:In Stock
-
$1,995.00
