About: Barco EC-210 Large Surface Event Controller

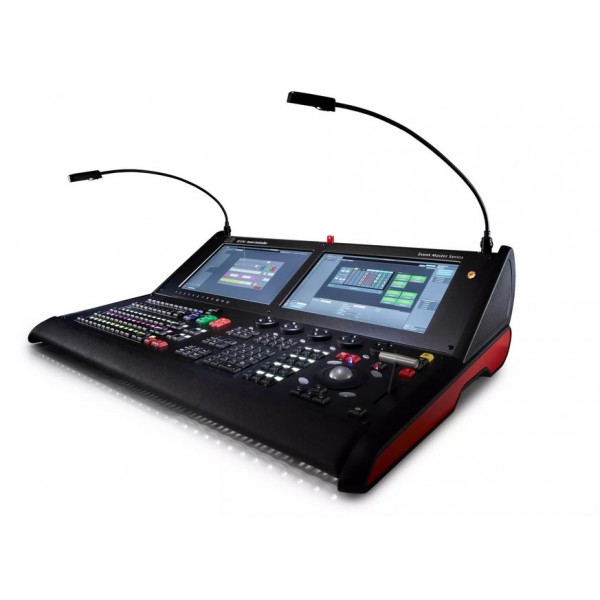

Barco EC-210 Large Surface Event Controller R9004790 is a purpose-built, stand-alone controller that launches directly into Event Master Toolset. You can now have source, preset, layer, user key, cue and destination selection at your fingertips. The EC-210 comes fitted with a trackball, dedicated programming and operating sections, and two touchscreen displays. Switch sources live to program, select large groups of resources at the same time, and manipulate layers with ease. The extra external input means you are now able to have both the user interface and external video on the same control surface when space is tight.

By adding an external display, you can monitor three different areas of the operating environment simultaneously, giving you the peace-of-mind and exceptional situational awareness required by intense shows. The EC-210 is a joy to run for everything from a tradeshow booth to large corporate events or music tours.

Features:

Robust version of the Event Master Toolset - same interface for Mac and PC
Onboard processing for stand-alone usage
Full control over the Event Master Series processors
Simultaneous connection of multiple controllers, GUI interfaces, and processors on same network
Dedicated buttons for transitioning all selected destinations, live switching, modifying program, etc.
Play/Pause and Stop button for Cues
5 rotary encoders with wheels for ergonomic pip control and rapid placement of resources
12 LCD Contextual Display Buttons to support the Syntax Programmer
Tri-Axis backlit trackball (based on function), with a very smooth rotary encoder for the third axis and 4 buttons for cursor and position control (future software release)
Internal, board mounted M2 SSD
5 USB ports for additional accessories such as mouse, keyboard, thumbdrive, etc.
Script lights, feedback LEDs, and integrated work lights with user controlled dimming.
Power button for soft shutdown and restart of the system
Back up and restore of system via USB or WebUI.
Integrated WebUI for software upgrades.
Dust cover included
Custom road case included
Note: The EC-210 HDMI monitor connections do not support analog output. Digital displays or active digital to analog converters are required.
