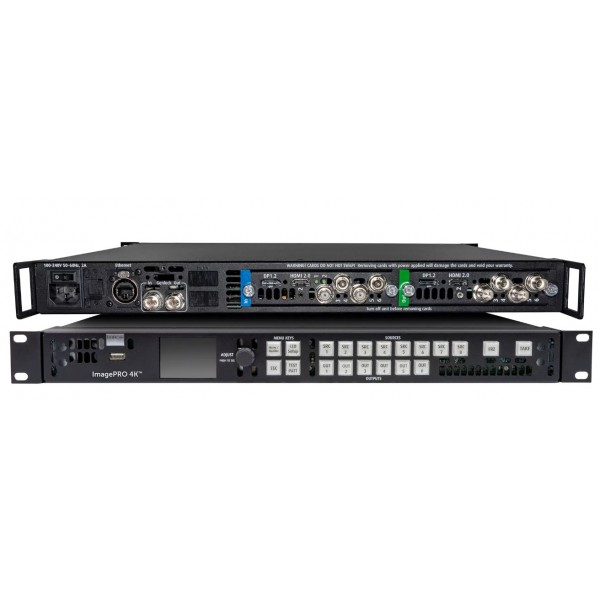

About: Barco ImagePRO-4K Tricombo Input/Output Card Switcher

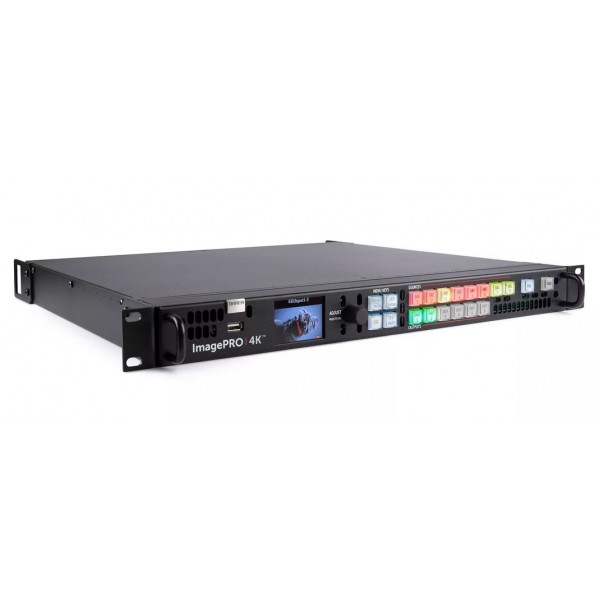

Barco ImagePRO-4K Tricombo Input/Output Card Switcher R9004795B offering latest I/O connectors enable you to seamlessly convert HDMI 2.0, DP 1.2 and 3G-12G SDI signals while also enabling output image rotation. ImagePRO-4K is built for life on the road. Assembled and tested for extreme use and abuse, the ImagePRO performs just as well at the gig as it does in the shop. What’s more, the live-source view on the front panel provides you with a clear view of the incoming signal giving you the confidence you need to execute your event flawlessly.

Need to slice and dice LED signals? The ImagePRO-4K does it with ease. Either chop up single inputs across several connectors, or drive multiple walls from multiple sources. The LED set-up menu will guide you through the process to achieve pixel perfect images. The 12-bit internal processing handles pre-scaling or cropping to an LED wall's actual resolution - in perfect detail.

Features:

Video Input
Comes loaded from the factory with a Tri-Combo input card
1x HDMI 2.0 4K60p 4:4:4 8bit, 4:2:2 10 bit
1x DisplayPort 1.2 4K60p 4:4:4 10bit,
2x 12G SDI 4K60p 4:2:2 10bit or 4x 3G SDI 1200p@60p 4:2:2 10bit

Video Output
Comes loaded from the factory with a Tri-Combo output Card
1x HDMI 2.0 4K60p 4:4:4 8bit, 4:2:2 10 bit
1x DisplayPort 1.2 4K60p 4:4:4 10bit
2x 12G SDI 4K60p 4:2:2 10bit or 4x 3G SDI 1200p@60p 4:2:2 10 bit
highest resolutions (4K 60p)
best color performance (4:4:4 sampling, 10-bit colors).
lowest latency for a scaler of this class (1 frame, progressive)

Model: R9004795B

Barco ImagePRO-4K Tricombo Input/Output Card Switcher

Name: Barco ImagePRO-4K Tricombo Input/Output Card Switcher
Brand: Barco
SKU: R9004795B
Price: 18995 USD
Availability: InStock
Rating: 5 (1 reviews)

Brands Barco
Product Code:R9004795B
Availability:In Stock
