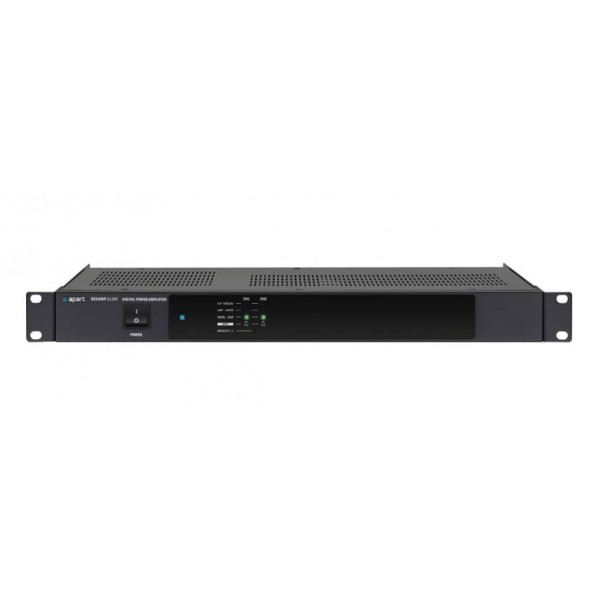

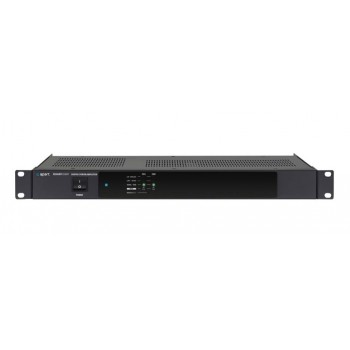

About: Biamp REVAMP2120T 2-Channel Power Amplifier

Biamp REVAMP2120T 2-Channel Power Amplifier extremely reliable, maintenance-free this is how we would describe our latest REVAMP2120T. This 2-channel digital power amplifier provides 2 x 120 watts output power @ 100 volts or @ 4 ohms, that can easily be bridged into a powerful 240 watts @ 100 volts or 8 ohm single amplifier. The REVAMP2120T is a convection cooled class-D
amplifier without built-in fans which implies that the amplifier is completely noiseless and du

Features

dynamic output power 4 ohms in watts: 2 x 120
dynamic output power 8 ohms in watts: 2 x 60
dynamic output power bridged 8 ohms in watts: 240
output power RMS 100 volts in watts: 2 x 120
minimum impedance load per channel in ohms: 4
power consumption (max) in watts: 300
RMS output power 4 ohms in watts: 2 x 120
RMS output power 8 ohms in watts: 2 x 60
output power RMS bridged 8 ohms in watts: 240
output power RMS bridged 100 volts in watts: 240
minimum impedance load bridged per channel in ohms: 8
power consumption (max) in watts: 300
height- rack units (1U=44 mm) in U: 1
height in mm: 44
depth (build in) in mm: 230
depth (incl front) in mm: 239
power supply: 115 - 230 VAC
power supply technology: switching mode power supply
output voltage tappings: 100 -70 - 50 - 35 watts - 4 ohms
output channels: 2
line input balanced: 2
line input unbalanced: 2
channel separation: > 65 dB @ 1 kHz
