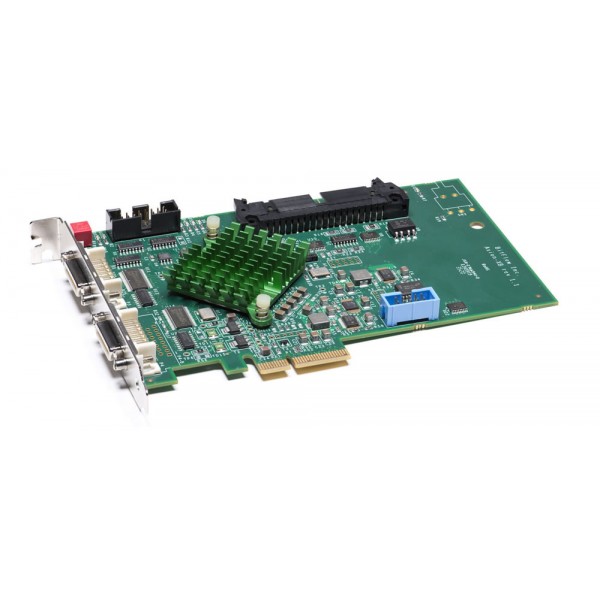

About: BitFlow Axion 2xB Camera Link Frame Grabber AXN-PC2-CL-2XB

The BitFlow Axion 2xB Camera Link Frame Grabber AXN-PC2-CL-2XB is a brand new PCIe Gen 2 interface, with DMA optimized for modern (fully loaded, fully busy) computers. The Axion 2xB is the most powerful CL frame grabber BitFlow has ever manufactured. A natural addition to this family CL Base version.

Features

Base Camera Link interface
All tap Camera Link tap formats are supported
Supports two Base CL cameras
Supports Power over Camera Link (PoCL) for both cameras
Support both PoCL and non-PoCL cameras
Provides Safe Power – full protection from all CL power line faults
Fully backwards compatible with non-PoCL cameras and cables
Half-Size x4 PCI Express Board
Acquire up to 24 bits at 85 MHz
Separate I/O for each camera
MDR Camera Link connectors
Both cameras can be independent or synchronized
StreamSync technology means that no on-board memory is needed, even with the fastest cameras
DMA at data rates up to 1.8 GB/S
Supports images up to 32K pixels x 16M lines
No frame rate limit (tested to over 250K FPS)
The Axion 2xB appears to Windows as two separate frame grabbers
Triggers and encoders for external control of acquisition
Sophisticated triggering modes for complex applications
Acquire, trigger controlled, variable length frames with line scan cameras
Quadrature encoder support including sophisticated triggering schemes
Encoder divider/multiplier
Two general purpose, on-board timing generators (exposure control, strobe, solenoids, etc.)
RoHS compliant
