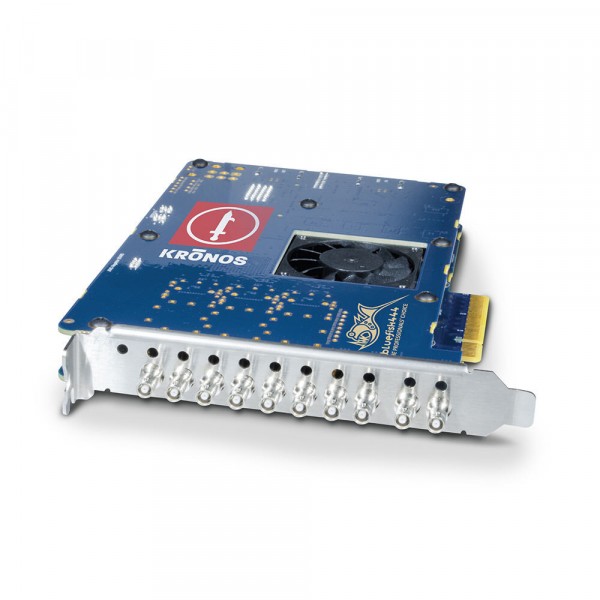

About: Bluefish444 Kronos K8 BLF-K4002

Bluefish444 KRONOS K8 BLF-K4002 highlights four bidirectional 3G/HD/SD-SDI and four bidirectional HD/SD-SDI connectors in addition to reference and LTC I/O. Over quad-interface SDI, the high level designer card upholds up to DCI/UHD 4K60 goal video info and result with high unique reach, high casing rates, and very low inactivity of sub on field or edge. Through a STEM port on the card and discretionary Bluefish444 EX-1 and EX-2 additional items, the KRONOS K8 [R] can likewise be furnished with RS-422 control, AES/EBU and simple sound, and extra LTC I/O.

The KRONOS K8 is an interior full-level, 2/3-length 8-path PCIe card viable with Windows, Macintosh, and Linux frameworks, however it can likewise be introduced in discretionary Thunderclap nooks from Piece and different brands for substitute sight and sound work process choices, incorporating coordination with a second PCIe card, for example, a PCIe-based SSD drive or Strike regulator. Included with the card is a free download of the Bluefish444 IngeSTore obtaining programming and Bluefish444 cross-stage SDK.

Features

Full-height, 2/3-length 8-lane PCIe, Gen 3 card (16-lane compatible)
Four independent and simultaneous bidirectional 3G/HD/SD-SDI BNC connectors
Four independent and simultaneous bidirectional HD/SD-SDI BNC connectors
Multichannel DCI/UHD 4K60 resolution playout or capture via quad-link 3G-SDI
Reference I/O
LTC I/O
Compatible with Mac, Windows, and Linux
Four high-performance bypass relays
12-bit video signal path
4 x 4 x 33-bit color matrix

Model: BLF-K4002
