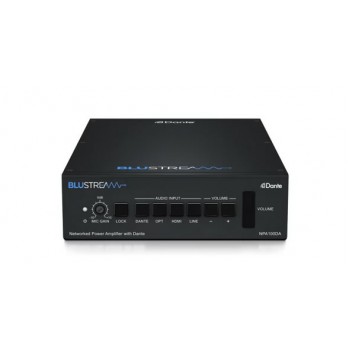

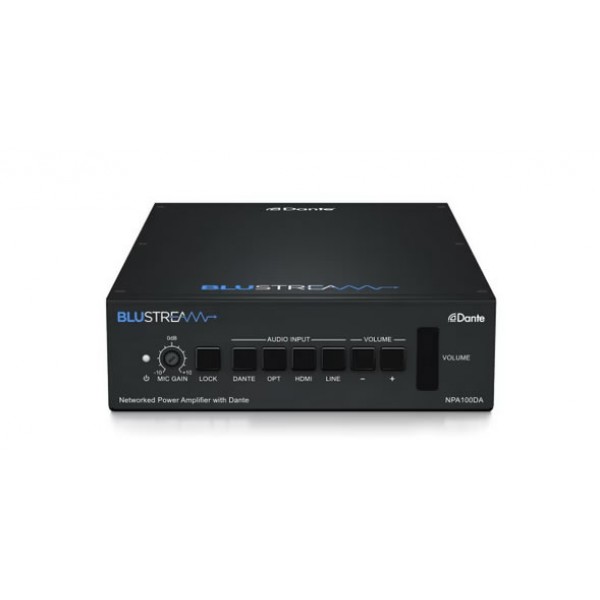

About: Blustream NPA100DA Networked Power Amplifier with Dante

Blustream NPA100DA Networked Power Amplifier with Dante offers 2x 50W digital amplifier (1 x 100W mono) or 70V / 100V hi-level constant voltage output, dedicated LFE subwoofer output, Dante audio integration and 2ch balanced / un-balanced audio outputs. The NPA100DA supports a variety of inputs including 2ch Dante audio, HDMI ARC, MIC audio with 48V Phantom power support, optical audio and 2ch balanced / un-balanced analogue audio.

The NPA100DA can be powered via PoE++ from a compatible network switch, or locally should the switch not support PoE++. The unit also includes the ability to lower the amplifier power output subject to PoE capabilities, support for combined or independent LAN and Dante connections, DSP with a 10 band EQ, audio delay for lip sync correction, independent gain control for audio inputs and control via front panel, IR, RS-232, TCP/IP, Web Gui or 12v trigger.

Features

Advanced network audio amplifier with Dante integration
Supports 2 x 50W @ 4 / 8 ohm, 1 x 100W @ 4 / 8 ohm, or 70 / 100V constant output for multiple speakers with longer cable runs
Supports power via PoE++ on Dante LAN connection or via local power supply*
Dual network option - independent Dante and LAN control ports, or combined to a single LAN port

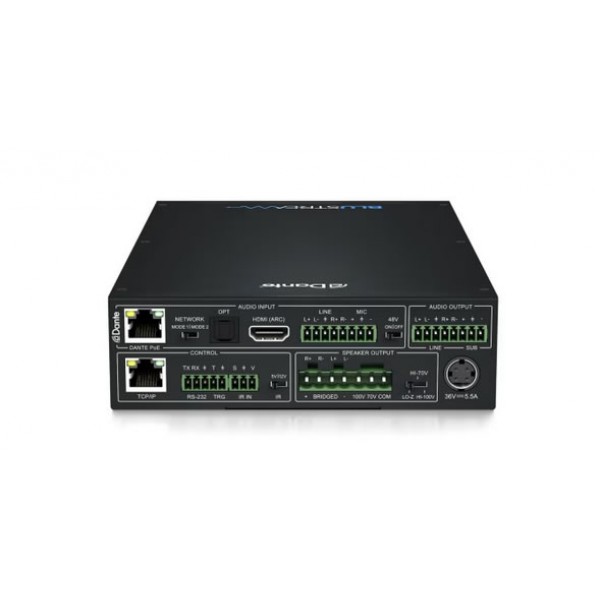

Audio inputs include:
- 2ch Dante/AES67 audio input
- HDMI ARC with CEC volume control
- MIC audio input with phantom power and auto‐ducking
- 2ch Analogue audio input – unbalanced & balanced
- 1 x Optical (S/PDIF) audio input
Audio outputs include:
- 2ch Dante/AES67 audio Output
- 2ch variable/fixed analogue output, balanced/un‐balanced
- 1 x LFE subwoofer output
Independent gain control for input channels
DSP with 31 band EQ with +/-10dB gain and audio delay
Local 12V input trigger for automated power control
Control via front panel, IR, RS‐232 and IP
Auto standby mode with signal sensing
In‐built web-GUI for setup and control

Model: NPA100DA

Blustream NPA100DA Networked Power Amplifier with Dante

Brands Blustream
Product Code:NPA100DA
Availability:In Stock
