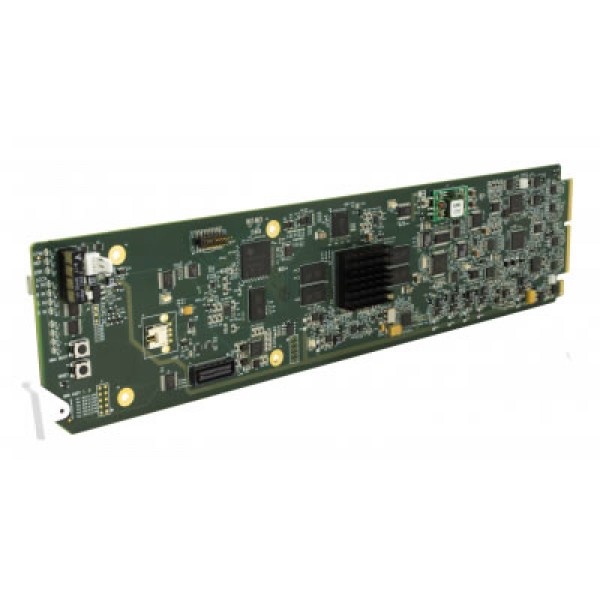

About: Cobalt Digital 9980-CSC-3G

Cobalt Digital 9980-CSC-3G 3G/HD/SD-SDI RGB Color Space Corrector / Frame Sync with Integrated Test Signal Generator and OGCP-9000/CC Control Panel Support provides a high-density card-based solution that includes an advanced frame sync/pattern generator in addition to a full-featured SD/HD/3G color corrector. The 9980-CSC-3G offers RGB-space color correction with YCbCr proc features with RGB processing controls providing full offset, gain and gamma adjustments. The YCbCr proc controls provide lift, gain, saturation, phase, white clip (hard and soft), black clip, and color saturation clip.

The built-in pattern generator (which provides calibrated 75% or 100% color bars among other patterns) preceding the color correction block allows setting custom calibration offsets to compensate for on-set monitor/camera colorimetry, with the custom settings saved to a preset, resulting in one-button recall of monitor/camera calibration settings. Any custom settings can be saved to user presets for instant recall via DashBoard or our intuitive OGCP-9000/CC Color Correction Remote Control Panel.

Full RGB color correction (offset, gain, gamma)
Frame Sync with full H/V offset and manual/LOS video pattern generator. Color corrector preceded by pattern generator allows custom offset calibrations for on-set monitor/camera colorimetry characteristics.
Passes entire YCbCr gamut in unity gain configuration
Extended YCbCr proc controls with white hard clip, white soft clip, black hard clip, and saturation clip
Phase preserved when applying saturation clip
One button bypass of color correction for comparison purposes
Low-power/high-density design – less than 18 Watts per card
Remote control/monitoring via DashBoard™ software or OGCP-9000/CC remote control panel. Award-winning OGCP-9000/CC Remote Control Panel provides fast and intuitive color correction control.
Five year warranty
