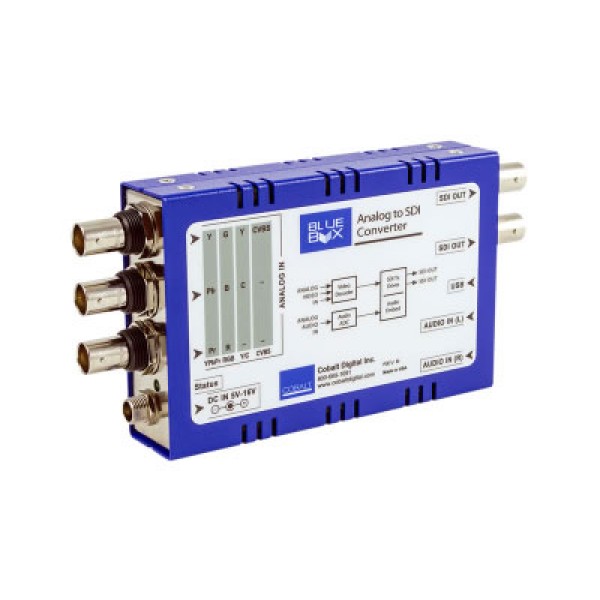

About: Cobalt Digital BBG-A-TO-S Analog to HD/SD-SDI Converter

Cobalt Digital BBG-A-TO-S Analog Component/Composite-to-HD/SD-SDI Converter with Audio Embedder (Includes PS4 Power Supply and Mini-USB Cable for Aux Power) Blue Box can power directly via USB to get its power from video monitors or other equipment. Blue Box Analog to SDI offers CVBS SD or component SD/HD conversion to SDI using high-quality 12-bit A/D conversion, with SD line 21 closed-captioning passed onto the converted stream.

Full support of multiple analog standards such as SMPTE, Betacam™, MII, RGB, and S-video (Y/C) is provided. A stereo analog audio pair can be embedded onto embedded audio channels 1/2 with full 24-bit resolution.

Rugged construction backed with a five-year warranty
Compact size and low weight design easily affixes directly to camera or host device chassis. Optional BBG-MB mounting bracket provides rigid, secure mounting to mounting surfaces.
Passes line 21 closed-captioning for analog-to-SD-SDI conversions
High-quality 12-bit A/D conversion of NTSC/PAL YPbPr, RGB or S-Video/CVBS SD video to SMPTE 259M or SMPTE 292M
Stereo analog audio input embedding to embedded audio pair on SDI output
Powers directly from host equipment USB or standard corded power adapter. USB power and corded adapter can be simultaneously used to provide redundant power sourcing.
2x SDI DA output

Model: BBG-A-TO-S

Cobalt Digital BBG-A-TO-S Analog to HD/SD-SDI Converter

Brands Cobalt Digital
Product Code:BBG-A-TO-S
Availability:In Stock
