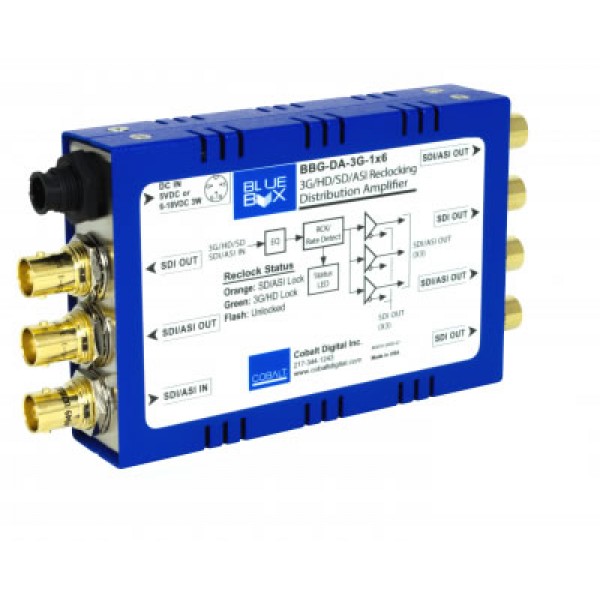

About: Cobalt Digital BBG-DA-3G-1x6 ASI Reclocking Distribution Amplifier

Cobalt Digital BBG-DA-3G-1x6 ASI Reclocking Distribution Amplifier features 3G/HD/SD status LEDs for quick identification of the input bit rate. The unit is fully automatic and supports SMPTE 424 (3 Gbit), 292 and 259M signals, and is equipped with 1 input and 6 reclocked SDI outputs. (Reclocking on 424M, 292 and 259M-C inputs, all other bit rates are non-reclocking.) The unit supports 1x3 ASI distribution using its non-inverting outputs.

Six 3G/HD/SD equalized and reclocked outputs
1x3 ASI distribution capability
Signal type (3G/HD/SD) status display
Auto-standard detect and configuration SMPTE 424M/292/259M
Five year warranty

Model: BBG-DA-3G-1x6
