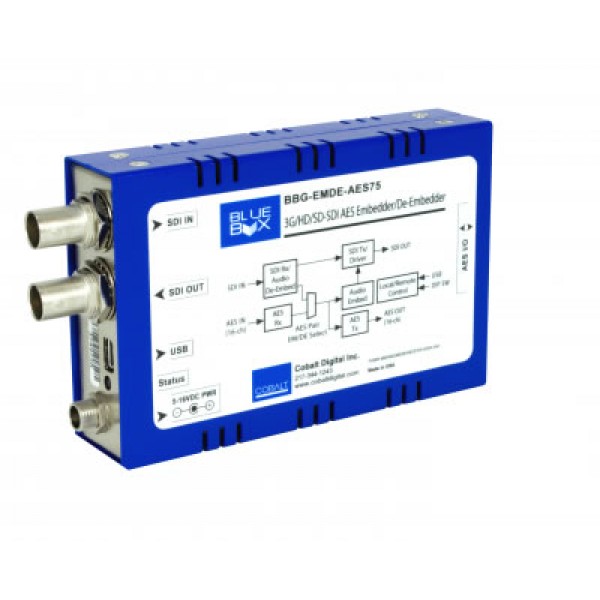

About: Cobalt Digital BBG-EMDE-AES75

Cobalt Digital BBG-EMDE-AES75 3G/HD/SD-SDI 8 Pair (16 Channel) AES Audio Embedder/De-Embedder; AES-3id 75 Ohm AES I/O on Female HD-15 Pin connector (Includes PS4 Power Supply)

8-pair (16-channel) AES support. Individual per-pair embedding or de-embedding. Multi-pin AES I/O connector provides compact footprint. AES I/O can utilize direct connection to standard
HD-15 connectors, or by using accessory BNC breakout cable (available separately).
Audio embed adaptive SRC allows asynchronous 48 kHz AES audio to automatically sync with device
48 kHz timing for glitch-free embedding. Individual, per-pair SRC auto-detects and disables SRC when a Dolby pair is detected on an input pair.
Configurable using device DIP switches or USB GUI remote control offering dynamic configuration control, status display, audio meters, tone generators, and other advanced control functions not commonly found on "throwdown" packages. USB GUI audio meters provide ready assessment of content presence and line-up.
Small rugged portable standalone package ideal for portable installations. Compact size and low weight design easily affixes directly to host device chassis. Optional BBG-MB mounting bracket provides rigid, secure mounting to mounting surfaces.
Rugged construction backed with a five-year warranty
