About: Datapath VisionAV-SDI Three Video Capture Inputs

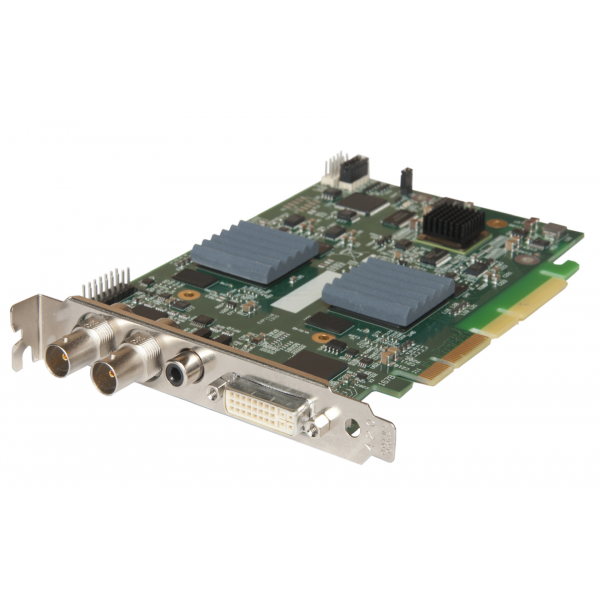

Having three video capture inputs, two of which allow HD capture and the third of which supports SD composite video, Datapath VisionAV-SDI Three Video Capture Inputs is a four-lane PCI Express card. It is possible to concurrently record these three separate video channels. Multiple audio capture channels are also added by the VisionAV-SDI, and these channels may be time-stamped in software to match all video capture channels. The complete mechanical sixteen-lane connection on this half-length, full-height card has notches that allow it to accommodate four, eight, and sixteen-lane motherboard connectors.

The VisionAV-SDI also adds embedded audio capture from the SDI signal, which can be sychronised with the respective video channel. This card provides balanced and unbalanced analog audio capture, through an optional audio module (the Datapath AM2)

This provides a single flexible card solution for areas such as medical, lecture capture, web casting and video conferencing.

Four lane PCIe lane bus, Net 1.6 GB/s total capture bandwidth
Triple channel PCI Express capture card
Channel 1 - a High Definition DVI-I capture channel
HDMI/ DVI/ TGB/ YPbPr video capture
HDMI embedded Audio Capture and streaming
Low input to output capture latency
Channel 2 - a Standard Definition Composite capture channel:
PAL, NTSC, SECAM up to 720 x 576 @ 16 Bit colour
Channel 3 - a SDI capture channel:
Single channel 3G/ HD/ SD-SDI capture card
SDI embedded audio capture and streaming
Loop through SDI BNC connection
Input status indicator lights
Direct DMA to graphics memory of third party graphics cards
All features of the Vision range of capture cards
Driver support included within the Datapath unified Windows driver
Driver support included with the Datapath unified Linux driver
