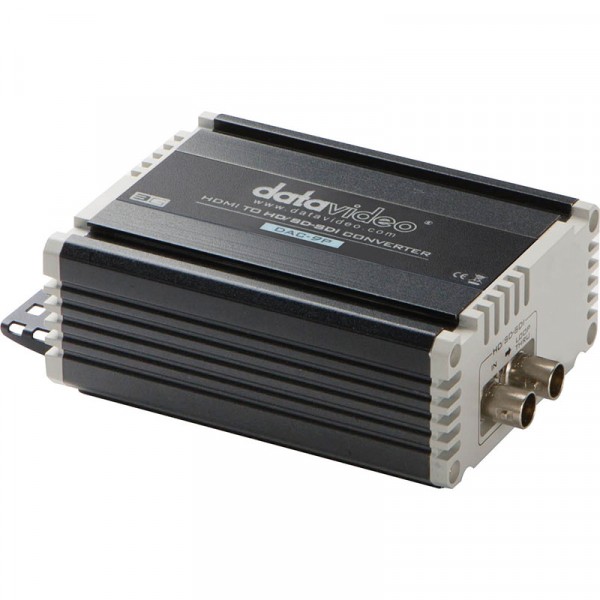

About: Datavideo DAC-9P HDMI to HD/SD-SDI Converter With Embedded Audio

The DAC-9P HDMI to HD/SD-SDI Converter from Datavideo allows users to connect HDMI devices to professional SDI equipment, like video switchers or recorders up to 200 meters away.

HDMI is not suitable for long cable runs, but using a Datavideo DAC-9P, users can convert HDMI to High Definition & Standard Definition SDI and take advantage of the high quality and affordable connectivity that SDI cables offer. The DAC-9P even embeds the audio from HDMI into the SDI signal so only one single low cost cable is needed.

Input: 1 X HDMI
Output: 2 x SDI (HD / SD SDI)
Enables long cable runs
Rugged case design
Audio can be embedded within SDI output signal
PAL / NTSC Compatible
Tripod Mount via Velcro straps (Supplied)
DC 12V Operation
Video output format is the same as the input format, so "what goes in, comes out"

Video input formats:

1080P59.94, 1080P60, 1080P50, 1080P30, 1080P29.97, 1080P25, 1080P24, 1080P23,98
1080i60, 1080i59,94, 1080i50
720P59,94, 720P60, 720P50
525i, 625i

Model: DAC-9P
