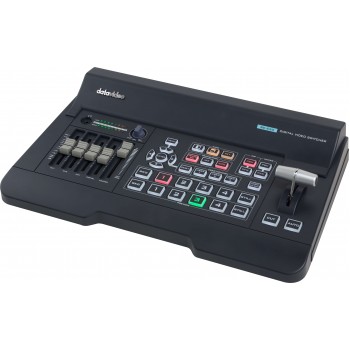

About: Datavideo SE-650 HD 4 Input Digital Video Switcher

The SE-650 HD 4 Input Digital Video Switcher from Datavideo it offers two HD-SDI and two HDMI inputs that support video formats up-to 1080i.

Advanced tools include Chromakey, Luma key, PiP, wipe generator, still store and tally.

Key Features

4 Input HD digital video switcher
Inputs: 2 x HD-SDI x 2 | 2 x HDMI
Outputs: 1 x HD-SDI | 2 x HDMI
Any Input can be used as a Frame store (Stills Store)
Assignable Outputs: Program (w/ DSK) | Clean Program (w/o DSK) | Clean Preview (w/o DSK) | Multiview
Frame Sync on each input
Flexible Mix/Effects Processor with 1 Upstream Keyer, supporting Chromakey & Linear/ Luma Key
1 Upstream PIP, supporting Chromakey & Luma Key
Wipe Generator: 32 Wipe Patterns, including Circle & Heart - Borders & Softness Control
Full M/E Preview function
Logo insertion (Animation logo, X/Y size)
XPT (Cross Point Assignment)
Tally Output
6 Channel Audio Mixer
Audio inputs: 2 x RCA Analogue (L/R) | 2 x Microphone
Audio outputs: 2 x RCA Analogue (L/R) | 1 x Stereo headphone mini Jack
Audio em-bedded function
Multi-language support
