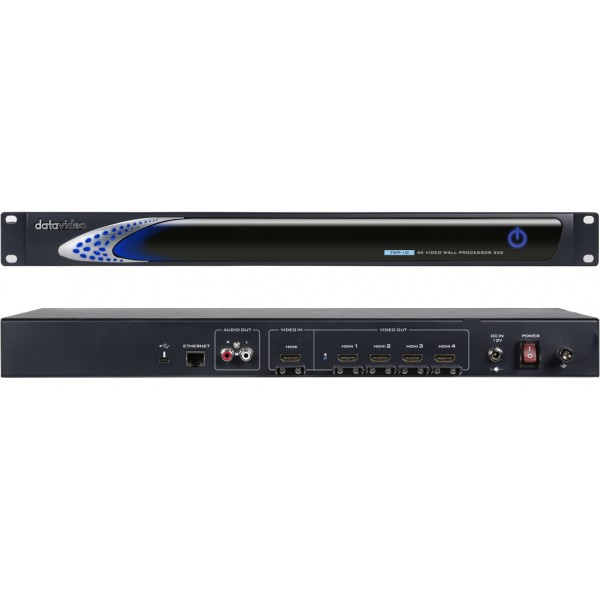

About: Datavideo TWP-10 4K Video Wall Controller 2x2

Datavideo TWP-10 4K Video Wall Controller 2x2 is a powerful, cost effective, and real time controller/processor for multiple flat panel displays. Datavideo TWP-10 allows users to input HDMI video up to 4K2K@60Hz 4:4:4. The embedded scaler converts signals from the HDMI source to match the original resolution of monitors, flat panel displays, projectors, and user-selectable output settings up to Widescreen Ultra Extended Graphics Array (WUXGA 1920x1200).

The TWP-10 sends the processed video through HDMI interface to the connected monitors or projectors, based on the display layout setup. The layout can be readily modified for various applications such as digital signage, video broadcast, education and surveillance system as well as visual effect optimization.

Product Features TWP-10

Four HDMI outputs with resolution from 720x480 to 1920x1200
Supports HDMI input from 1280x720 to 4K2K@60 (YUV 4:4:4), interlaced or progressive HDCP compliant
Image parameters and layouts are automatically saved in flash memory of the device and can be recalled for later use
Several image parameters and layouts can be saved in computers and loaded for later use
Firmware upgradable for new features and technology enhancements
Software control through USB and Ethernet
Resize, position, zoom for each HDMI output video
User-selectable output settings, up to 1920x1200
Supports input rotation at the resolution up to 1080p
4K2K60 (YUV 4:4:4) can be divided and displayed on four 1080p60 TVs (2x2 layout only)
