About: FieldCast Panel One

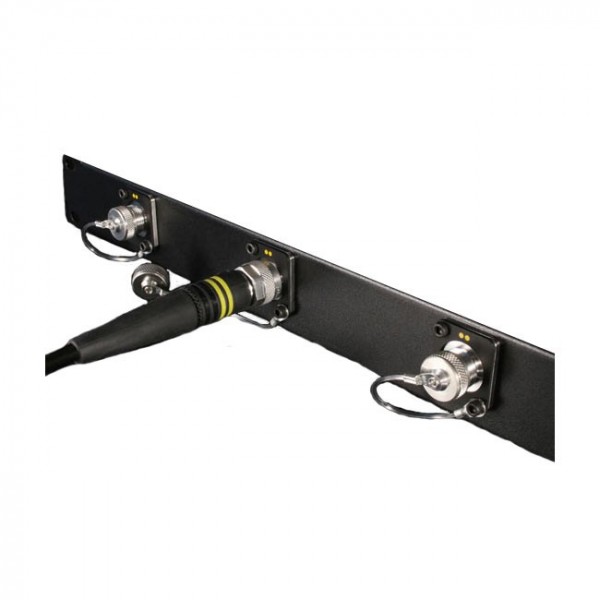

FieldCast Panel is a 19" 1RU panel, equipped with four FieldCast 2Core SM Chassis Connectors, ideal for using FieldCast cable in conjunction with Blackmagic Design Studio Converter.All four Chassis Connectors have a 50 cm. outlet at the back, with LC Duplex connector at the end, matching the four LC SFPs at the back of the converter unit. You only have to mount the panel and plug them in to be able to go FieldCast!
Specifications
1.8mm. steel panel with rounded edges and black paint finish
standard 1RU panel size
four D-size (24 mm.) cutouts
horizontal punch spacing 105 mm.
four FieldCast 2Core Chassis Connectors SM (single mode)
50 cm. patch cable outlets with LC Duplex connectors
bend insensitive cable quality for easy routing to Studio Converter
weight 620 grams
product code: br003
Model: FC-br003
