About: Flock Audio PATCH XT Advanced Analog Routing System

The PATCH XT System advanced analog routing technology from Flock Audio configuration of 192 Points (96 Inputs / 96 Outputs). Meticulously designed, the PATCH XT System was created for power users who need to get the most of out of their analog hardware routings capabilities. PATCH XT is equipped with the same Matrix Technology as our flagship model, the PATCH XT System boasts upgrades including Locking USB Host Connector, CAT5 Ethernet Network Host Connector option, Beautifully machined anodize panel among many other upgrades.

Features:

Computer Connectivity: USB 2.0
Compatibility: OSX 10.7 Lion & Newer / Windows 7 & Newer
Software: PATCH APP (Online Download)
Chassis: 3U Rackmount (13" Deep)
Patch Point Connections: 192 Total - 96 Inputs / 96 Outputs
48v Phantom Power: 32 Channels Independently Controllable

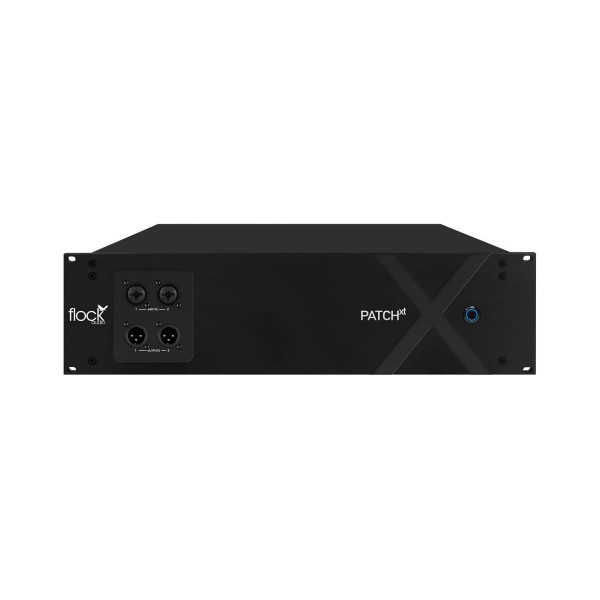

Front Connectors: 2x Combo TRS/XLR Inputs & 2x XLR Outputs
D/A or A/D Conversion: No AD/DA Conversion, 100% Analog, Sonically Transparent Audio Path
Routing System: Patended Flock Audio Matrix Technology
Audio Detection: Input Analog Audio Detection Functionality
Sleep/Wake Function: Remote Control PXT's On/Off via PATCH APP Software

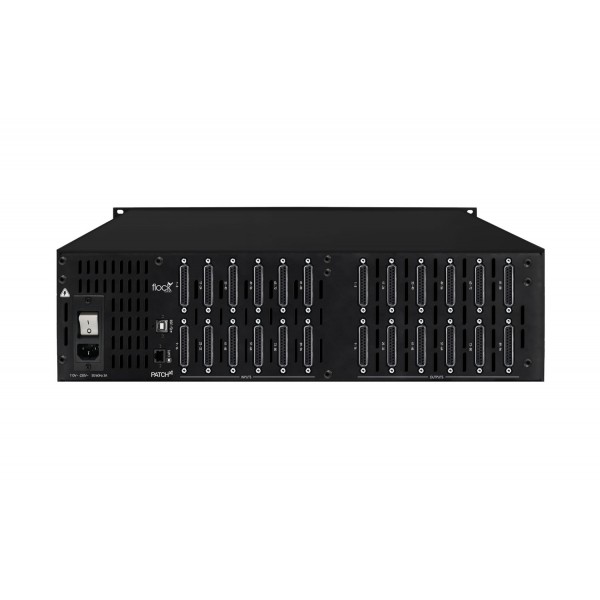

Analog Connections: DB-25/D-SUB Female Connectors (Standard Tascam Wiring Pinout)
