About: Focusrite ISA ADN8 8-Channel A/D Card

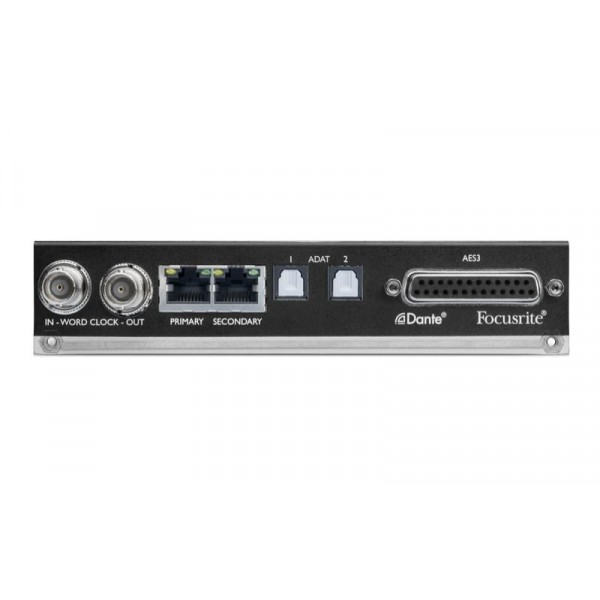

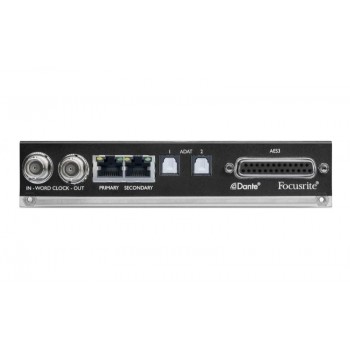

Focusrite ISA ADN8 is an optional eight-channel A-D card that provides high-quality analogue-to-digital conversion for the Focusrite ISA 428 MkII and ISA 828 MkII microphone preamps. Featuring Dante, AES3 and ADAT connectivity, the card operates at sample rates up to 24-bit / 192kHz. The card offers primary and secondary RJ45 Dante output ports, an AES59 DB25 connector for AES3 output, and a pair of TOSLINK connectors for ADAT output. Word Clock I/O on BNC connectors allows synchronisation to multiple digital sources. This also includes syncing the Dante network to house clock, or for syncing external equipment to the Dante network. Dante outputs on the ISA ADN8 provide ISA 428 MkII and ISA 828 MkII with network connectivity to all Focusrite RedNet devices and Red interfaces, as well as any other Dante-enabled device from hundreds of manufacturers. Metering and settings are accessed through RedNet Control, routing is configured using Dante Controller.

Features

8 channels of high-quality analog to digital converter
Sample rates: up to 24-bit/192kHz
Redundant Dante connectivity via primary/secondary Ethernet ports with auto switchover
Industry standard eight-channel AES59 DB-25 output connection for AES3
2 TOSLINK connectors for ADAT (8 channels at up to 96kHz; 4 channels at 192kHz)
Word clock I/O on BNC connectors allows synchronization with many external devices
RedNet Control and Dante Controller software allow Dante routing and control from computer; no hardware patching required
