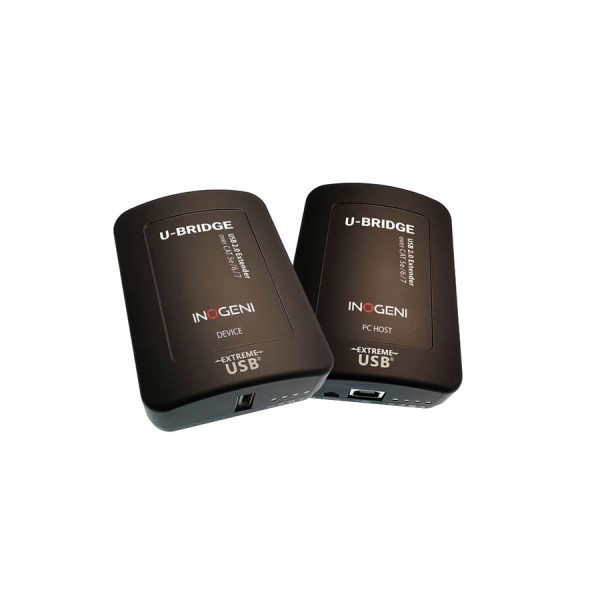

About: Inogeni U-BRIDGE USB 2.0 Camera Extender

The Inogeni U-BRIDGE USB 2.0 extender for cameras and any USB 2.0 device is the problem-solver to interoperability challenges, enabling high-speed USB 2.0 connections up to 100 m /330 ft. over a single CAT 5e/6/7 cable—without the need for drivers. The U-BRIDGE is fully compatible with all USB cameras, including professional-caliber equipment, such as Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras. U-BRIDGE supports all USB 2.0/1.1 devices and is designed for use with USB cameras, whiteboards, microphones, audio devices, and any other USB device (hard drives, flash drives or keyboards).

PC Host extender

USB connector: 1 x USB Type B Receptacle
Link connector: 1 x RJ45
Dimensions: 65.0 mm x 87.5 mm x 30.0 mm (2.6″ x 3.4″ x 1.2″)
Mounting: Slots for cable ties
Enclosure material: Black ABS with rubberized coating

Device extender

USB connector: 1 x USB Type A Receptacle
Link connector: 1 x RJ45
Available Current: Up to 1 Amp to USB port
Dimensions: 65.0 mm x 87.5 mm x 30.0 mm (2.6″ x 3.4″ x 1.2″)
Mounting: Slots for cable ties
Enclosure material: Black ABS with rubberized coating
