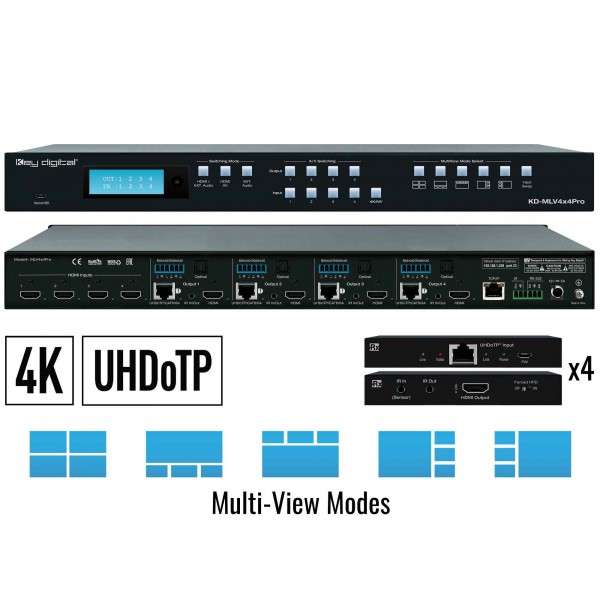

About: Key Digital KD-MLV4X4PRO Multi-View Matrix Tiling Processor

Key Digital KD-MLV4X4PRO Multi-View Matrix Tiling Processor allows viewing up to 4 sources on the display. switcher device with multi-view video processing tailored for a variety of environments, from sports and gaming caves to corporate AV setups. Mirrored HDMI and CAT6 outputs with 4 included Rx units, for a total of up to 8 possible displays connected.

KD-MLV4x4Pro multi-view tiling processor empowers users to display up to four video sources simultaneously on a single screen. This offers a selection of default and customizable layout presets. This feature enables content layering, allowing users to adjust bezel frame width and color to suit their preferences. The video processor effortlessly handles 4K / UHD content at 60fps input, ensuring smooth transitions between sources when all outputs are in full-screen mode.

Features

Multi-view Tiling Processor
Full-Screen Mode: View full-screen content on any display
Multi-View Mode: Choose from 5 default layouts or create custom presets
Seamless Switching: Un-interrupted screen transitions during source selection while in full-screen mode
Built-In UHDoTP Tx with PoC: The KD-MLV4x4Pro powers four included KD-EXMLVRx units
Mirrored Outputs: Simultaneously active HDMI + UHDoTP connections per output display the same AV signal. This allows connection for a total of 8 possible displays at the same time
Independent Audio Matrix: You can route audio output ports separately from HDMI & UHDoTP ports. Also, you may select audio from any source while in multi-view mode
Video Resolution: Inputs support up to 3840 x 2160p 4:2:0 at 60fps. Outputs support 3840 x 2160p 4:4:4 at 30fps

Model: KD-MLV4X4PRO

Key Digital KD-MLV4X4PRO Multi-View Matrix Tiling Processor

Brands Key Digital
Product Code:KD-MLV4X4PRO
Availability:In Stock
