About: LYNX Technik PMV 1841 Quad Split Multiviewer 3G/HD/SD

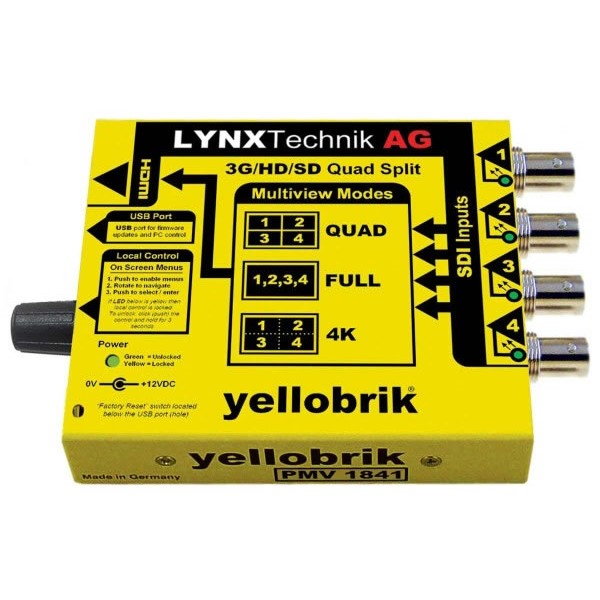

The PMV 1841 is a compact quad split multiviewer from LYNX Technik is ideal for applications needing basic quad split multiview capability into an HDMI monitor. LYNX Technik PMV 1841 can quad split all four inputs are arranged into a fixed quad display. Each input can have the monitoring tools (or on screen overlays) individually configured. Full Screen – One of the four inputs is displayed full screen with the user configured monitoring tools. In this mode 2 channels embedded audio from the selected SDI input is embedded into the HDMI output. 4K Monitoring – The module can be used to monitor 4K (12G) signals. The four SDI inputs are “stitched” together to make a full frame for monitoring. The 4K image is down converted to HD for display (4K monitor not required).

The module is simple to setup and configure using the integrated local control and on screen menu system. All settings are automatically stored in flash RAM. USB is port is provided for firmware updates and also PC/MAC control using the yelloGUI application.

LYNX Technik PMV 1841 Features

4 x SDI inputs and 1 x HDMI output
Support for 3G/HD/SD -SDI formats (auto-detect)
Full Screen, Quad Split and 4K (12G) monitoring modes
Integrated local control and on screen menus
Multiple on screen monitoring tools for each input:
Waveform Monitor
Vectorscope
Auto Level Meters (upto 16 Channels)
IMD (text ID)
Safe Area /4:3 Extraction / Center Cross markers
Video Standard
Time Code
Audio and Video Alarms
Input present LEDs for each SDI input
4K (12G) monitoring mode (down converted HD HDMI output)
yelloGUI compatible for PC/MAC control
