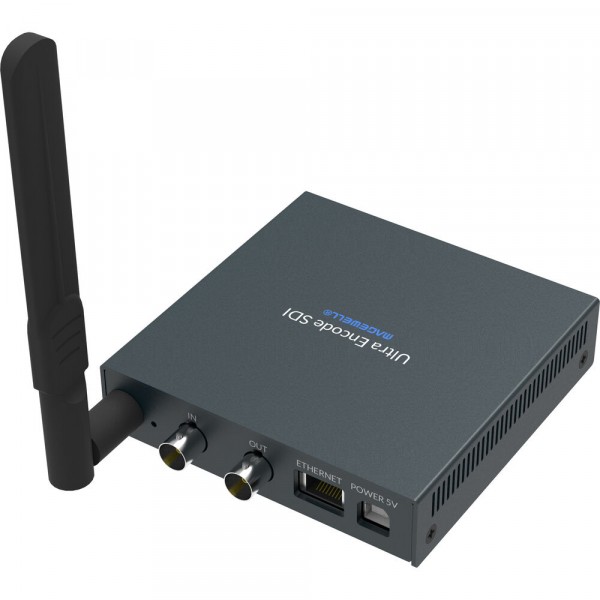

About: Magewell Ultra Encode SDI 53050

The Magewell Ultra Encode SDI has 16-channel embedded audio support, 3.5mm audio input and output, a 3G/HD/SD-SDI input and loop output, an Ethernet port, and Wi-Fi. It encodes up to 1080p60 in H.264/265 with 2-channel AAC audio and accepts DCI 2K60 input. A 16 Mb/s main stream and a 2 Mb/s substream are supported by the compact encoder for dual streaming. Audio can be extracted via the 3.5mm line out or embedded into the encoding stream.

Features

Dual Stream H.264/265 Encoding with AAC
Up to 2048x1080p60 Input & Loop Output
16 Mb/s Main and 2 Mb/s Sub Stream
16-Channel SDI Embedded Audio
3.5mm Audio Line In and Line Out
Wide Streaming Protocol Support
Control via Web UI or HTTP APIs
Native Facebook, YouTube, Twitch Support
