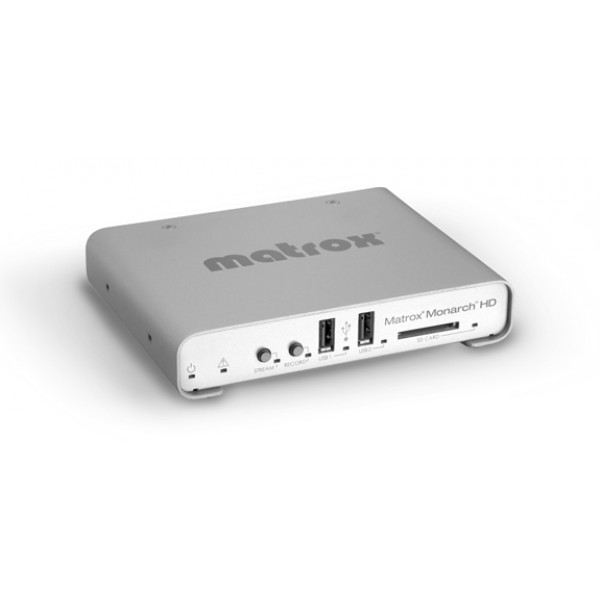

About: Matrox Monarch HD Streaming Recording Appliance

Matrox Monarch HD is a small, easy-to-use video streaming and recording appliance designed for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing. By separating the task of recording from streaming in a single integrated unit, Matrox Monarch HD ensures that the Content Delivery Networks (CDNs) are focused on delivering quality video to your audience while you control the quality of the archive.

From any HDMI input source such as a camera or switcher, Matrox Monarch HD generates an H.264-encoded stream compliant with RTSP or RTMP protocols. While encoding the video at bitrates suitable for live streaming, Matrox Monarch HD simultaneously records a high-quality MP4 file to an SD card, a USB drive, or a network-mapped drive. Matrox Monarch HD is remotely controlled using any computer or mobile device with a web browser.

Record master quality video while streaming

If an event is worth streaming, it is worth recording at the highest possible quality. The better the recording quality, the more value it offers a post event produced asset. These assets can be made available to your audience as fast turnaround VOD files or as fully post produced highlight reels.

The quality of your recording should not be affected by your upload bandwidth. Matrox Monarch HD lets you set recording bitrates as high as 30 Mbps while simultaneously streaming at up to 20 Mbps.

Matrox Monarch HD injects the highest quality video into every bit regardless of input source or target bitrate. Combining the power of the built-in H.264 encoder with Matrox’s high quality deinterlacing and scaling engines guarantees stunning results.

Ready to edit and upload with MP4

Matrox Monarch HD records high quality H.264 video as MP4 files, which offer maximum versatility for all applications. Upload a file to your own web server or to a Content Delivery Network (CDN) like YouTube. Alternatively, you can directly import the file into most creation tools without the need for file transcoding.

Connect with HDMI

The HDMI output of the Matrox Monarch HD makes it easy to monitor what you are streaming and recording, regardless of whether the signal is received from a camera, a switcher, a signal convertor, or a computer. Eight channels of embedded audio can be processed and output. Two channels of audio input with loopout are also available via 1/8” stereo jacks.
