About: Middle Things Fiber Camera Box 12G Dual Channel Optical Converter

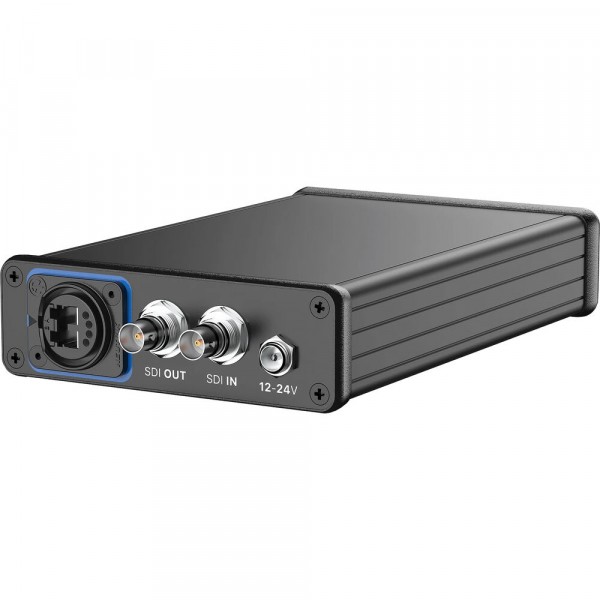

Middle Things Fiber Camera Box 12G Dual Channel Optical Converter MT-FIBCAMBOX12G transforms a double 4K SDI In + 4K SDI Out 12G signal into a single optical fiber cable through a robust Neutrik OpticalCon Duo connector. The compact size and aluminum body of the converter makes it ideal for on-camera use. Featuring both an SDI Input and SDI Output, the camera operator can also receive the program video (or any other video) from the control room. Since the Blackmagic Camera Control & Talkback protocol is also supported, it is the perfect companion for an URSA Broadcast , an URSA Mini or a Studio Camera 4K Pro. A D-Tap to barrel 12V is included so that you can power the converter from your camera.

The Fiber Camera Box SDI 12G can be used with the Middle Things Dispatch 5 12G , Bridge 5, Bridge 10, as well as the Blackmagic Mini Converter Optical Fiber 12G converter with 12G SFP modules. Supported SDI video signals are 3G, 6G, and 12G (max 2160p60 )

Features:

I/O connections: 12-24V DC IN , SDI IN , SDI OUT (up to 6G) , Neutrik OpticalCon Duo LC
Input Voltage : 12-24V DC
Power Consumption :
Fiber type : Single Mode
Length :18cm / 7.1 inch
Width : 10.5cm / 3.95 inch
Depth : 3.5cm / 1.2 inch
Weight : 360g / 0.79 lbs
Storage Temperature : 14 to 140°F / -10 to 60°C
Package Weight : 5kg / 1.1 lb
Box Dimensions (LxWxH) : 20cm x 14cm x 8cm | 87”x 5.5” x 3.1”

Model: MT-FIBCAMBOX12G

Middle Things Fiber Camera Box 12G Dual Channel Optical Converter

Brands Middle Things
Product Code:MT-FIBCAMBOX12G
Availability:In Stock
