About: Middle Things Fiber Unite 5 12G

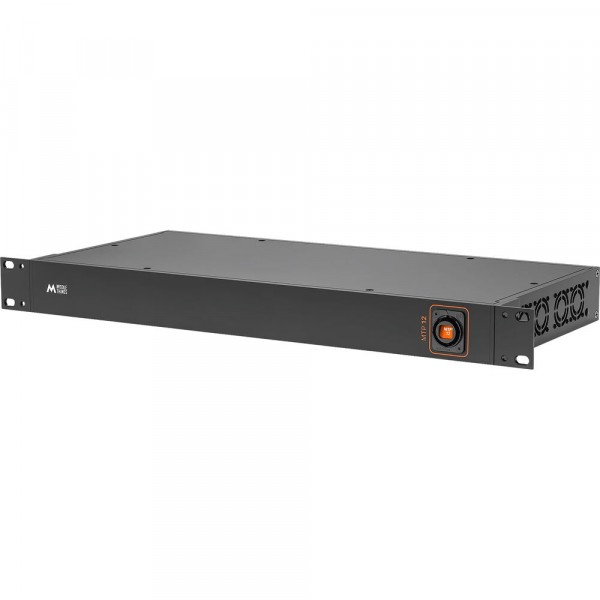

Middle Things Fiber Unite 5 12G MT-FIB5XUNITE12G you can merge up to 5 pairs of 4K SDI IN / SDI Out signals + a LAN connection into one single 12 channel MTP® 12 fiber cable. You can connect the other end of the MTP® 12 cable into either: Another Unite 5 module that will demerge into 5 SDI In/Out Pairs + LAN. A Fiber Bridge 5, which will split it into 5 OpticalCON Duo connectors that can be used with Fiber Camera Boxes, acting as an intermediary stage box. A multichannel optical cable is lighter and much more reliable than a traditional copper BNC cable since it is insensitive to all electromagnetic interferences. You can run your fiber cable over thousands of miles with zero dropouts.

The opticalCON MTP 12 connector makes the Unite compatible with the rugged opticalCON MTP® 12 cable drums by Neutrik, designed for field use and tough handling. The connector has a built-in automatic shutter that protects the 12 fiber cores as soon as the cable is disconnected.

Features:

I/O connections: 5x SDI In, 5x SDI Out, 1x Neutrik opticalCON MTP® 12, 1x LAN , AC Power.
Input Voltage : 85V ~ 264V AC
Power Consumption :
Fiber type : Single Mode
LAN support : 10/100/1000Mbps Full/Half Duplex
Power Consumption :
Height : 4.5cm / 1.8 inch
Width : 48cm /18.9 inch
Depth : 22.5cm / 8.9 inch
Weight : 2.5kg / 5.5 lbs
