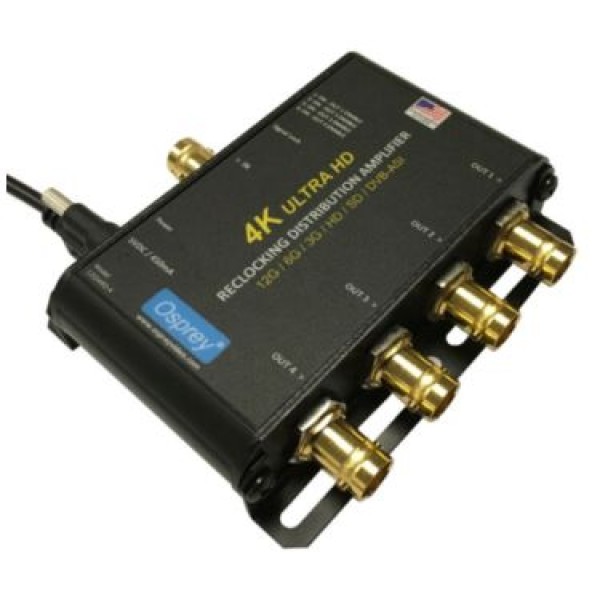

About: Osprey 12SDARD-4 Ultra HD 97-11124 Reclocking Distribution Amplifier

Osprey 97-11124 12SDARD-4 Ultra HD Reclocking Distribution Amplifier with 12G SDI / DVB-ASI offers Automatic Input Detection will accept any single link SDI input up to 12G and passes it directly to four outputs while preserving Ancillary Data and Embedded Audio.

Osprey 97-11124 Powered by USB via a locking connector the 12SDARD-4 is perfect for streaming workflows.

Standards Compliance
SMPTE 259M, SMPTE 292, SMPTE 344M, SMPTE 424M
SMPTE ST-2081, SMPTE ST-2082
Video Inputs
1x 12G / 6G / 3G / HD / SD SDI , DVB-ASI w/ embedded audio
Outputs
4x 12G / 6G / 3G / HD / SD SDI , DVB-ASI w/ embedded audio
Reclocking Yes
Cable Equalization (Belden 1694A)
70m at 12G, 150m at 3G, 200m at HD, 400m at SD

In the Box
Mounting brackets
Locking USB Power cable
USB Wall Power Supply

Model: 97-11124
