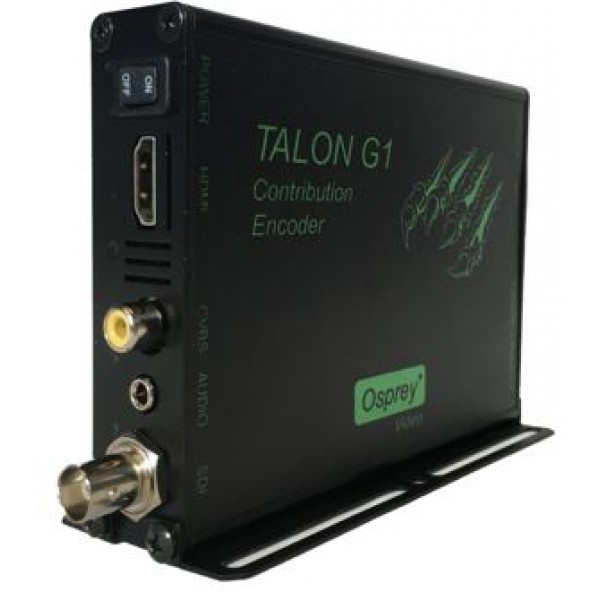

About: Osprey Talon G1 H.264 Video Hardware Encoder

Osprey Talon G1 H.264 Video Encoder is simple to use, portable, and can easily stream both standard definition and high definition content in H.264 to RTMP servers. It has a fanless design and a power consumption of 6W. Its wide input voltage range of 9VDC to 17VDC makes it an ideal candidate for battery-powered equipment and installations. The Talon has two modes of operation. MBR mode allows you to stream one source to three destinations, whereas LC mode is ideal for lecture capture because it allows you to stream two sources to two destinations.

Features

H.264 Encoder
Two Configuration Modes
Closed Caption Support
Simultaneous Streaming and Archiving
Inputs: HDMI 1.4, 3G SDI, Composite/CVBS

Closed Caption:
Closed Captioning (EIA-608 & EIA-708) Type 1 ATSC Picture User Data is automatically embedded in the H.264 SEI per SCTE 128-1 standard (available in RTMP & UDP Streams)

HTTP Based Configuration:
Easily control encode settings with the mobile-friendly HTTP based interface. Quickly modify resolutions, frame-rates, and destination settings.

Audio Input Options:
Embedded HDMI/SDI: Four stereo pairs are available per input. Additional Unbalanced Stereo Pair available from front panel.

Video Input Options:
3G SDI, HDMI 1.4, Composite/CVBS

Configuration Modes:
MBR Mode - Allows the user to select 1 source and stream up to 3 destinations in Multiple Resolutions and Bitrates. Supports Frame Alignment for seamless RTMP MBR streaming. Output formats include RTMP, RTP, UDP and save to .TS file in resolutions up to 1080P/60
LC Mode - Ideal for Lecture capture, LC mode allows 2 sources to be streamed to 2 destinations. SDI becomes the primary input, and the user can select either HDMI or Composite as the second input. Excellent solution for Simultaneous Streaming of Camera Content and Presentations for Classroom and Boardroom.
