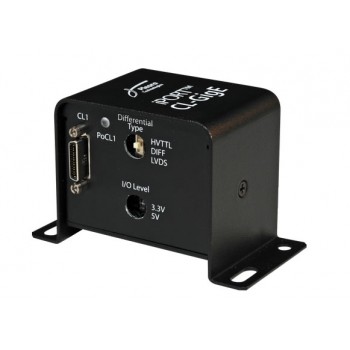

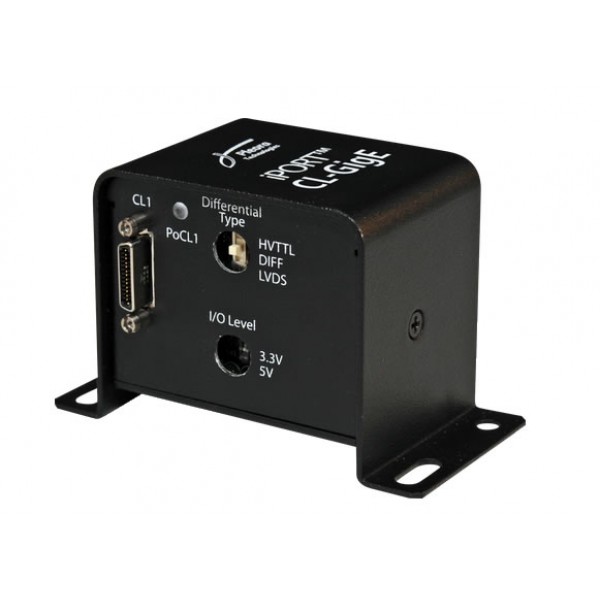

About: Pleora Technologies iPORT CL-GigE External Frame Grabber

Pleora Technologies iPORT CL-GigE External Frame Grabber 900-6010 Camera Link cameras can enjoy the long-distance cabling, computing platform support, and networking advantages of Gigabit Ethernet (GigE). The CL-GigE converts video data from Camera Link cameras to packets and transmits it over GigE with low, predictable latency. Cabling distances can be up to 100 meters using standard CAT5e/6 cabling, and unlimited with off-the-shelf Ethernet switches.

The iPORT CL-GigE is supported by Pleora’s feature-rich eBUS™ SDK application tool kit. With this software suite, designers can rapidly prototype and deploy production-ready software to support video transmission over GigE, 10 GigE, and USB 3.0 using the same application programming interface (API).

Features:

Transmits video from Camera Link Base cameras over GigE with low, predictable latency
Extended operating temperature range of -40°C to +60°C
Plugs into a wide range of computing platforms without needing a PCI frame grabber
Compact and low power
Line scan and area scan modes
120 MB frame buffer to accommodate multi-mega pixel sensor sizes
Record and playback capabilit
IEEE 1588 Precision Time Protocol capabilities allow users to precisely control, trigger, and synchronize equipment and multiple cameras, while the GPIO minimizes effects of electrical noise
Power over Ethernet (PoE), Power over Camera Link (PoCL) and externally powered options
Programmable logic controller (PLC) allows users to precisely measure, synchronize, trigger, and control other vision system elements
Supported by Pleora’s feature-rich eBUS SDK

Model: 900-6010

Pleora Technologies iPORT CL-GigE External Frame Grabber

Brands Pleora Technologies
Product Code:900-6010
Availability:In Stock
