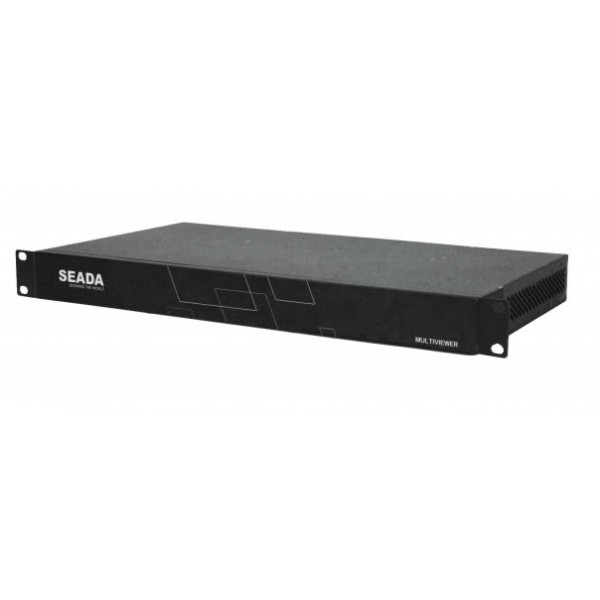

About: SEADA SolarWall SW-MV-S HD Multiviewer 9 SDI/1 HDMI

The SolarWall SW-MV-S HD Multiviewer from SEADA is a latest video control systems in a compact 1RU chassis. They are able to monitor 9 SDI inputs, 1 HDMI Output and 1 SDI Output. They are extremely flexible and fast switching capable Multiviewers making it perfect for applications such as broadcasting, security, boardroom, TV studio and so on.

SolarWall HD multiviewers support auto scaling to enable images to be sized and positioned anywhere on screen. They support a wide range of creative layouts, including split, side-by-side, picture-in-picture, overlapping windows and even in a solo view for full screen viewing of any single source. They support up to 40 pre-set customized layouts and also the layouts looping functionality making the system management extremely easy. SolarWall HD multiviewers are easy to set up and control, using either a standard Windows based PC to access SEADA’s intuitive control software, or using a command line interface through the RS-232 or Ethernet port.

Key Features

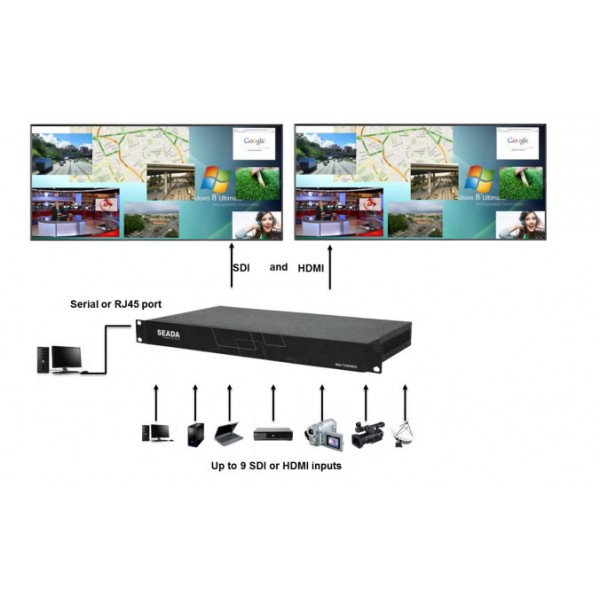

9 SDI inputs, 1 HDMI and 1 SDI Output
2 outputs ( 1 SDI + 1 HDMI)
Integration of up to 9 sources on a single display
Windows any size, anywhere
Picture in Picture
Picture over Picture
On screen display (OSD) for each window
Up to 32 customized pre-set layouts
Pre-set layouts looping
HDCP Compliant
Supports automatic upscaling
Supports both progressive and interlaced inputs
1RU rack mountable
Low power consumption
Seamless switching between inputs
EDID management

Model: SW-MV-S
