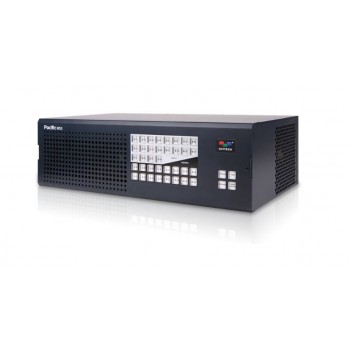

About: Avitech Pacific MS-6C 32x32 Matrix For HDMI SDI USB Switching

Avitech Pacific MS-6C handles multiple video formats and can serve as the hub for connecting a mix of computers, cameras, and videos to monitors and projectors. With instant matrix crosspoint coupled with non-blocking switching architecture, Pacific MS is capable of mapping varied sources to any one or multiple destinations located nearby or disparately per application demand.

Employing output cards with dual scalers, the Pacific MS delivers an affordable solution to seamlessly switch/route any video signal across numerous displays. Multiple sets of sources can also be seamlessly routed to respective destinations all at once with a single command, fully addressing the needs for uninterrupted image or video transitions throughout staging and presentation applications.

The Pacific MS features grouping of individual outputs and creating multi-monitor workstations for easy management over multiple systems. Without requiring separate sets of mouse/keyboard, the operator can seamlessly switch to control any workstation computer by simply moving the mouse pointer from one screen/window to another (“Surfer” feature).

Custom workstation allows user to access information coming from disparate sources and networks within easy reach.
Taking streamlined workflow to the next level, the Pacific MS enables grouping the controlling GUI with other outputs.
This forms an integrated workstation for effective operation space across multiple systems.

Features

Six RU chassis providing 32x32 matrix for HDMI, SDI, and USB switching, monitoring, and control.
Rack chassis with control board.
Control board with in-system GUI for making source switching, preview, and local system connection.
HDBaseT port extents GUI/local system KVM to 100-meter.
HDBaseT receiver is an optional item, sold separately.
Provide card slot for 8 input cards, 8 output cards, and 4 USB/KM cards.
Redundant hot-swappable power supply modules (2x 460W)

Model: Pacific MS-6C

Avitech Pacific MS-6C 32x32 Matrix For HDMI SDI USB Switching

Brands Avitech
Product Code:Pacific MS-6C
Availability:In Stock
