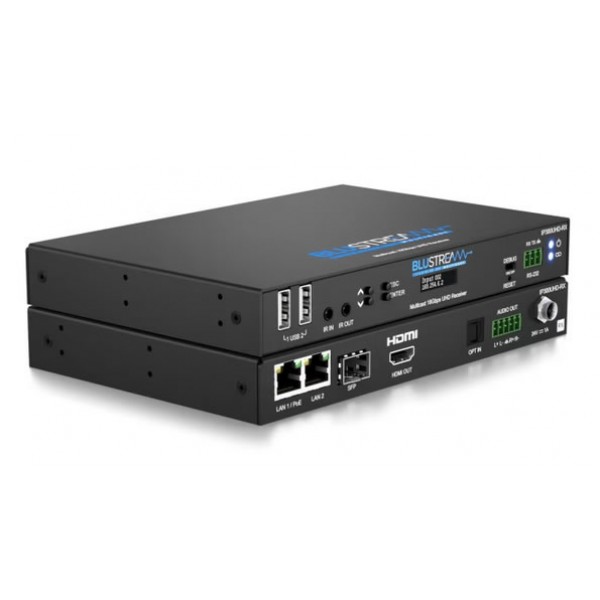

About: Blustream IP300UHD-RX 4K HDMI Video Over IP Receiver

Blustream IP300UHD-RX 4K HDMI Video Over IP Receiver offers visually lossless compression technology, delivers 18Gbps HDMI, HDCP2.2, audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface. The IP300UHD-RX features a second RJ45 LAN port for daisy chaining the HDMI signal onto further units. With a full 18Gbps HDMI scaling chipset on-board, the HDMI output can be adjusted to lower resolutions where legacy displays are required in the same system as full 4K. The scaling capabilities of this unit also allow for videowalls to be created where needed.

Features

Video Input: 1 x LAN RJ45 connector, 1 x SFP connector
Video Output: 1 x HDMI Type A, female, 1 x LAN RJ45 connector
Audio Input: 1 x Optical (S/PDIF)
Audio Output: 1 x 5-pin Phoenix connector
Ethernet Port: 2 x LAN RJ45 connector
Fibre Port: 1 x SFP connector (fibre module not supplied)
RS-232 Serial Port: 1 x 3-Pin Phoenix connector
USB/KVM Port: 2 x USB2.0-type B for KVM
IR Input: 1 x 3.5mm stereo jack
IR Output: 1 x 3.5mm mono jack
Dimensions (W x D x H ): 190mm x 128mm x 25mm
Packaging Dimensions (W x D x H): 260mm x 180mm x 55m
Unit Weight: 0.75kg
Power Consumption: 9W (max)
Shipping Weight: 1kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Power Supply: Class 3 IEEE 802.3af POE PD or 24V 1A DC PSU

Model: IP300UHD-RX
