About: Blustream IP300UHD-TX 4K HDMI Video Over IP Transmitter

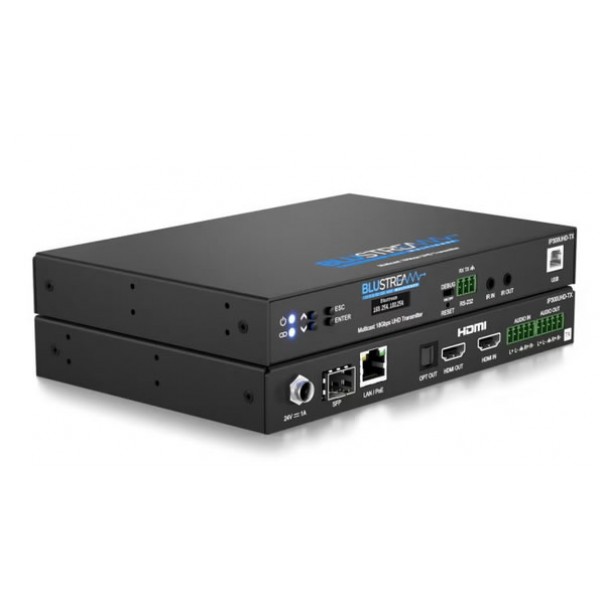

Blustream IP300UHD-TX 4K HDMI Video Over IP Transmitter featuring industry leading 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers 18Gbps HDMI, audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface. The unit can be powered via PoE from the network switch, or locally should the switch not support PoE.

Features

Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
Virtually unlimited system size
Extends HDMI up to a distance of 100m over a single CAT cable
SFP port for signal distribution over fibre
Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
Supports up to 4K UHD 60Hz 4:4:4
Supports HDR including Dolby Vision LLM
Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
PoE (Power over Ethernet) to power Blustream unit from PoE switch
HDCP 2.2 compliant with advanced EDID management
Audio breakout to optical (S/PDIF) and analogue L/R audio outputs, supporting both balanced and unbalanced audio signals
Balanced/unbalanced analogue audio input for replacing the HDMI embedded audio with a different audio signal
OLED front panel display for advanced system information and manual configuration
Optional 24V power supply (should Ethernet switch not support PoE)
Compatible with Blustream IP300UHD-RX and IP350UHD-TX/RX products
IP300/350 Multicast platform features 4 operational modes:
Matrix distribution (requires 1Gb network switch)
Video wall (requires 1Gb network switch)
One-to-one HDMI extender (no network switch required)
One-to-many HDMI extender (no network switch required)

Model: IP300UHD-TX

Blustream IP300UHD-TX 4K HDMI Video Over IP Transmitter

Brands Blustream
Product Code:IP300UHD-TX
Availability:In Stock
