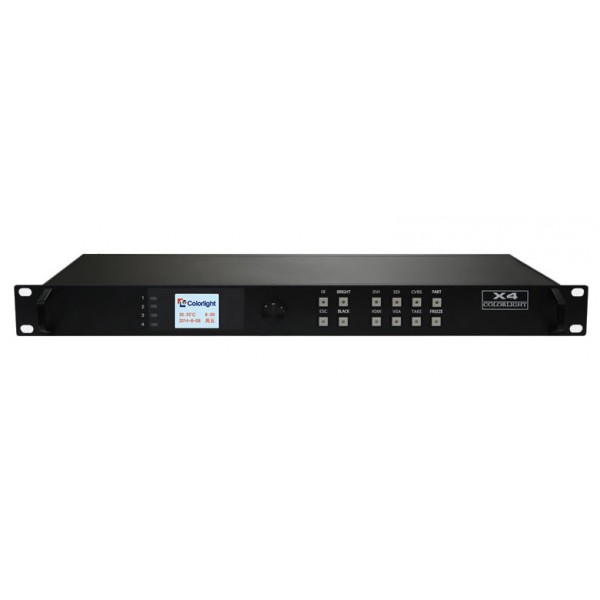

About: Colorlight X4 Professional LED Display Controller

Colorlight X4 is a professional LED display controller possesses powerful video signal receiving capacity, and supports multiple signal inputs, with max input resolution of 1920×1200 pixels. Meanwhile, 4 Gigabit Ethernet output ports support arbitrary splicing.

Features:

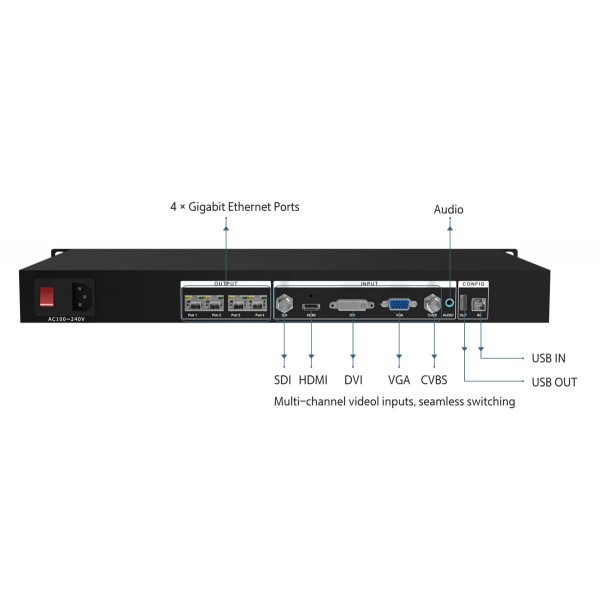

Video input ports including SDI×1, HDMI×1, DVI×1,VGA×1,CVBS×1
Supports input resolution up to 1920×1200@60Hz
Loading capacity:2.3 million pixels,Maximum Width：2560 pixels, Maximum height: 2560 pixels
Supports arbitrary switching of video input, and the image can be zoomed freely
Dual USB2.0 for high speed configuration and easy cascading;
Supports splicing and cascading among several controllers with synchronization strictly
Supports brightness and chromaticity adjustment
Supports improved gray-scale at low brightness
Supports HDCP1.4
Compatible with all receiving cards, multifunction cards, optical fiber converters of Colorlight
