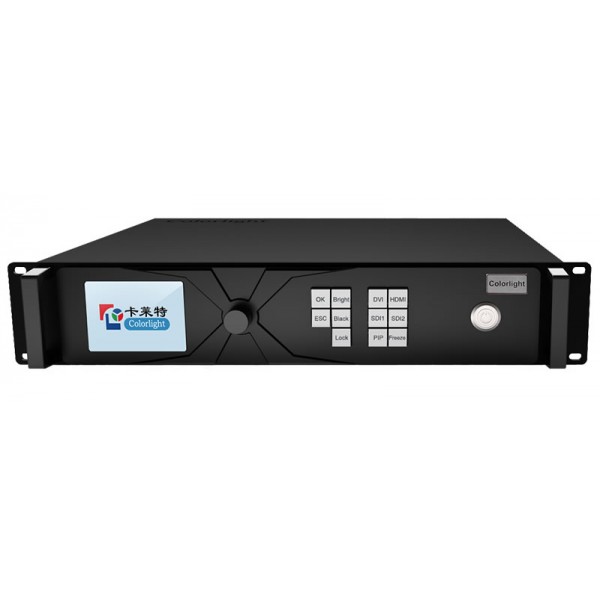

About: Colorlight Z6 Super Controller

Colorlight Z6 Super Controller is a professional LED display controller. As video splicer, processor and sender in one combined, Z6 has 4K video input capability, UHD and HDR images processing and transmission. Z6 can be applied to high-end rental display and high resolution LED display perfectly.

Features

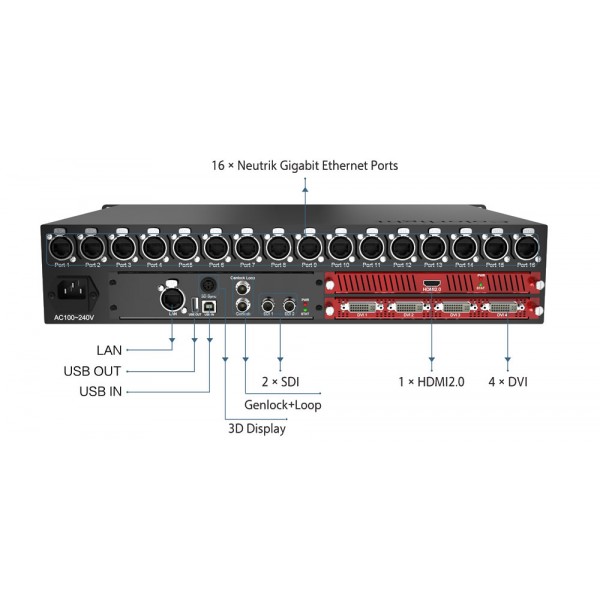

Video input ports including 2×SDI, 1×HDMI2.0, 4×DVI;
Supports input resolution up to 3840×2160@60Hz;
Loading capacity: 8.3 million pixels, Maximum Width/Height: 8192 pixels;;
The input images can be spliced and zoomed according to the screen resolution;
Supports PIP function, the location and size can be adjusted freely;
Supports splicing and cascading among several controllers with synchronization strictly;
Supports 3D display;
Supports brightness and chromaticity adjustment, color gamut transformation;
Supports improved gray-scale at low brightness;
Supports HDCP2.2
Compatible with all receiving cards , multifunction cards, optical fiber converters of Colorlight
