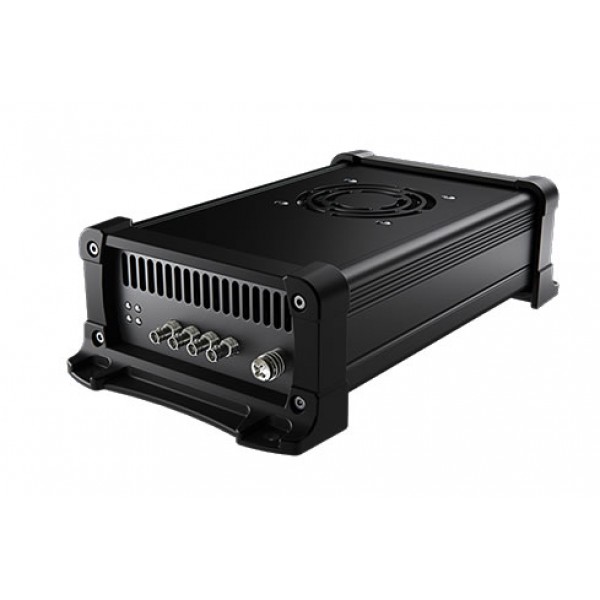

About: Euresys Coaxlink CXP-12 to QSFP+ Converter

Euresys Coaxlink CXP-12 to QSFP+ Converter offering four-connection CoaXPress CXP-12 to CoaXPress-over-Fiber converter it allows connecting a CXP-12 camera to a Coaxlink QSFP+ frame grabber using fiber optics. With multi-mode fibers, the maximum cable length can reach 150 meters. With single-mode fibers, the maximum cable length can reach 40 kilometers.

Features:

Provides easy cable length extension using CoaXPress-over-Fiber
Allows connecting a CXP-12 camera to a Coaxlink QSFP+ frame grabber
Four CoaXPress CXP-12 connections on the camera side
One QSFP+ port compliant with 40 Gbps optical modules on the frame grabber side
PoCXP camera power supply
Highest data acquisition rate in the industry
Up to 5,000 MB/s bandwidth from camera to host PC memory
Low CPU overhead, low latency, low jitter image acquisition
