About: Euresys Coaxlink QSFP+ Four-Connection CoaXPress-over-Fiber Frame Grabber

Euresys Coaxlink QSFP+ Four-Connection CoaXPress-over-Fiber 3625 Frame Grabber is a light but significant extension of the existing CoaXPress specification to support transport over fiber optics. CoaXPress (CXP) is the de-facto standard for high-bandwidth computer vision applications. CoaXPress 2.1, the latest version of the specification, specifies the CXP-12 speed, a 12.5 Gbps (Gigabit per second) connection over a coaxial copper cable. As link aggregation is common with CoaXPress, bandwidths of 50 Gbps (12.5 x 4) are easily achievable with four CXP-12 connections. CoaXPress-over-Fiber has been designed as an add-on to the CoaXPress specification. It provides a way to run the CoaXPress protocol, as it is, unmodified, over a standard Ethernet connection, including fiber optics.

Features

One QSFP+ port compliant with 40 Gbps optical modules
5,000 MB/s camera bandwidth
PCIe 3.0 (Gen 3) x8 bus: 6,700 MB/s bus bandwidth
Feature-rich set of 20 digital I/O lines
Extensive camera control functions
Memento Event Logging Tool
Compatible with CustomLogic: Your own FPGA logic
Available as CXP to nGMII (device) or nGMII to CXP (host) Bridge IP Cores
Ultra-high data/frame rates
Many accessory and cabling options to cover any length requirement
Low CPU overhead, low latency, low jitter image acquisition

Model: 3625

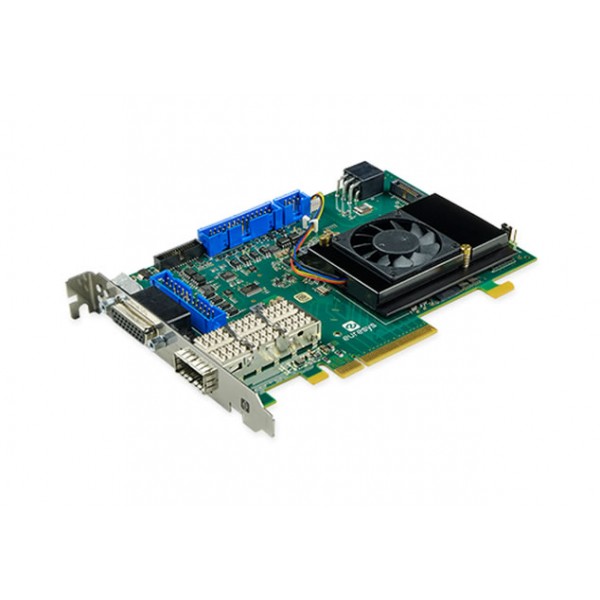

Euresys Coaxlink QSFP+ Four-Connection CoaXPress-over-Fiber Frame Grabber

Brands Euresys
Product Code:3625
Availability:In Stock
