About: Euresys Coaxlink Quad 3D-LLE CXP-6 Frame Grabber

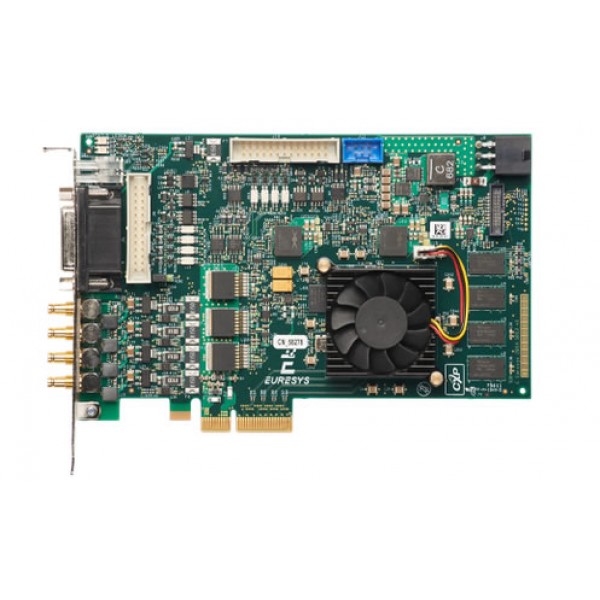

Coaxlink Quad 3D-LLE CXP-6 Frame Grabber 1637 with on-board laser line extraction for 3D profiling. The Coaxlink's on-board FPGA measures the position of the laser line during the image acquisition without loading the host CPU. The Coaxlink directly transfers the computed 3D height map to the host PC memory without delay, in real-time. Power over CoaXPress feed your camera up to 17 W per channel under 24 VDC with automatic device detection, measurement and overload protection.

Features:

Laser line extraction with zero host CPU usage
Single and Dual Laser Line Extraction into a depth map
Real-time generation of 16-bit 3D height maps
Choice of algorithms: Maximum, Peak, Center of Gravity (COG)
Precision: up to 1/256 pixel (with Peak and COG algorithms)
Performance: 19,000 profiles/s from 1024 x 128 images. 38,000 profiles/s from 1024 x 64 images
Memento Event Logging Tool

Applications:

Machine Vision for the Electronic Manufacturing Industry
Machine Vision for the General Manufacturing Industries
