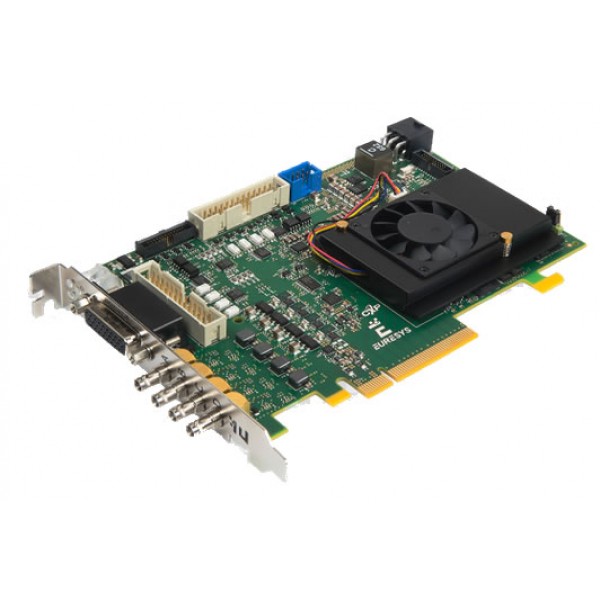

About: Euresys Coaxlink Quad CXP12 JPEG 4CH Frame Grabber

Euresys Coaxlink Quad CXP12 JPEG 4CH Frame Grabber CXP-12 JPEG enables the compact implementation of a multi-channel ultra-high-resolution image acquisition and recording system. The embedded pixel processing drastically reduces the CPU workload to monitor and compress image streams. The 4-camera firmware variant of the Coaxlink Quad CXP-12 JPEG implements four independent image acquisition channels with, for each of them, a Bayer CFA decoder and a baseline JPEG encoder that can process up to 250 Megapixels/s, for a total of 1 billion color pixels per second.

Features

Four 250 MPixels/s JPEG encoders
Compatible with 8-bit/pixel Bayer CFA cameras
Two streams per camera: JPEG stream and RGB preview stream
Four CoaXPress CXP-12 connections: 5,000 MB/s camera bandwidth
PCIe 3.0 (Gen 3) x8 bus: 6,700 MB/s bus bandwidth
Memento Event Logging Tool
