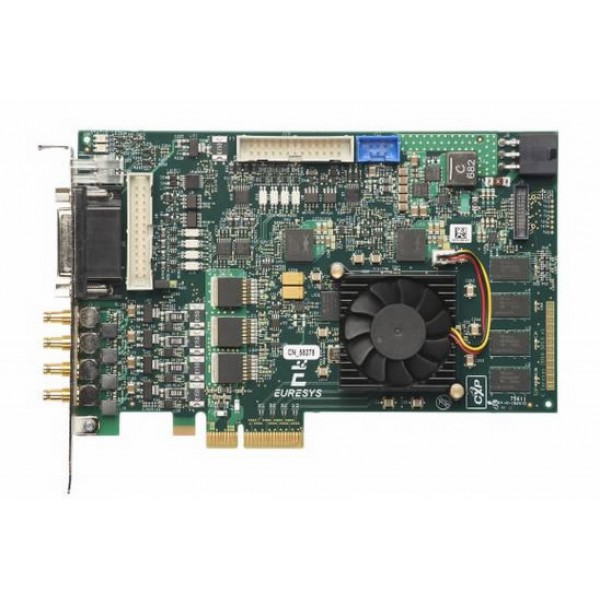

About: Euresys Coaxlink Quad G3 4CH CXP-6 CoaXPress Frame Grabber

Euresys Coaxlink Quad G3 4CH CXP-6 CoaXPress Frame Grabber is a high speed serial over coaxial cable standard for the transmission of video and still images. The most common application is interface camera to computer interface via frame grabber, on applications such as Machine vision performing automated acquisition and analysis of images. When connected to a CoaXPress camera, a high speed downlink of up to 6.25Gb/s per cable for video, images and data is enabled, plus a lower speed 20Mb/s uplink for communications and control requiring no additional external power supply or cables, with cable lengths exceeding 100m may be achieved.

Data rates up to 6.25Gb/s over a single coax cable and up to 25Gb/s when using four cables.
A single cable supports data transfer, camera control, trigger and power supply (up to 13W)
Flexible, reliable and cost effective cable solution, through use of standard coax - e.g RG59 and RG6.
Precise triggering capability, low and fixed latency
Plug-and-play capability detects camera to grabber system automatically
Supports GenlCam"s standard protocol for higher level control

Features

Four CoaXPress CXP-6 connections: 2,500 MB/s camera bandwidth
PCIe 3.0 (Gen 3) x4 bus: 3,300 MB/s bus bandwidth
Feature-rich set of 20 digital I/O lines
Fan-cooled heatsink
Extensive camera control functions
Memento Event Logging Tool
