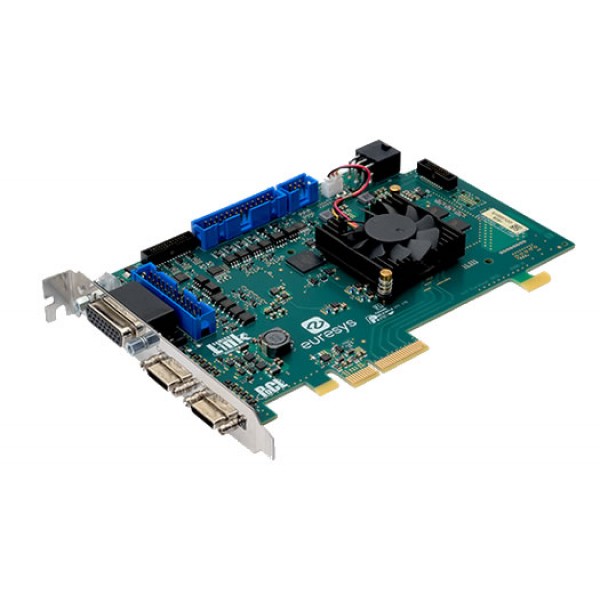

About: Euresys Grablink Duo Camera Link Frame Grabber

Euresys Grablink Duo Camera Link Frame Grabber 1628 supports continuous web scanning (to inspect infinite, continuously moving surfaces without losing a single line) and discrete object scanning (to acquire the image of objects moving in front of the camera).

A trigger is used to start the acquisition when the part is in position. Hardware triggers come from the board's I/O lines. Software triggers come from the application.

After it is started, the acquisition either:

Continues indefinitely (for web inspection applications)
Continues for a programmable number of lines (to acquire the image of objects of a known length)
Continues until an end trigger is received (to acquire the image of objects of a variable length)
An optional trigger delay is available to postpone the beginning of the acquisition for a programmable number of lines.

Features:

Maximum aggregated camera data transfer rate 6.8 Gbit/s (850 MB/s)
Camera types
Area-scan cameras:
Grayscale and color (RGB and Bayer CFA)
Line-scan cameras:
Grayscale and color RGB
Precise control of start-of-scan and end-of-scan triggers
On-board memory 512 MB
