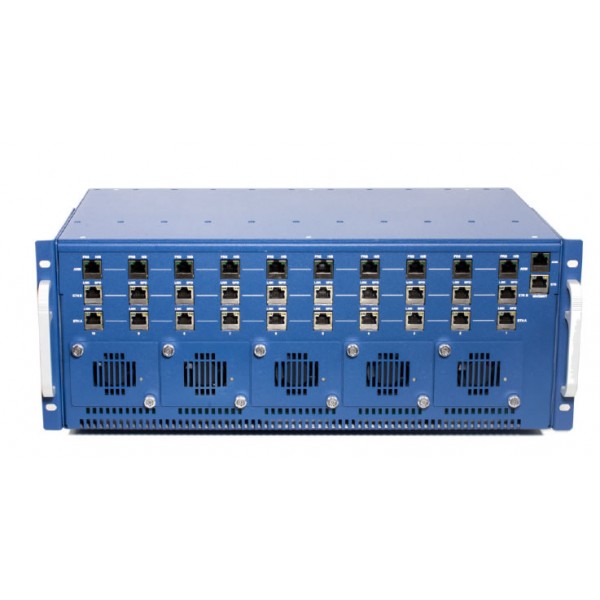

About: Exterity AvediaStream c1210 Chassis 10-slot

The AvediaStream c1210 AVSTR-C1210-US chassis comprises ten hot-swap module slots, capable of accepting the latest Exterity AvediaStream blades. All slots can stream TV and radio (news, sports, entertainment, educational) HD and SD channels over your existing network.

c1210 Technical Specification

Each blade slot provides one admin and two Ethernet connectors
Up to three hot-swap PSUs (two supplied as standard)
Five hot-swap fan modules
Passive backplane for cutting-edge IPTV reliability
Aluminium chassis for lighter weight and easy to use carry/rack positioning handles
Simple installation to get IPTV systems up and running quickly
Hot-swap IPTV system blades and chassis power supplies enable
quick and non-intrusive upgrades to existing installations and provide a high level of redundancy
Ten fully independent blade slots
19” rack mountable

Interfaces

Ten Exterity blade slots, one Monitor blade slot
Twenty 802.3 10/100/1000 Ethernet (RJ-45) sockets (two per blade slot)*
One 802.3 10/100 Ethernet (RJ-45) Socket for monitor blade slot
Eleven Serial RS232 Ports (RJ-45) for local administration of each Exterity blade

End Panels

Supplied with ten blank blade slot ends and one blank monitor blade end
Blank blades slot ends protect chassis slots and ensure efficient chassis airflow and temperature management
