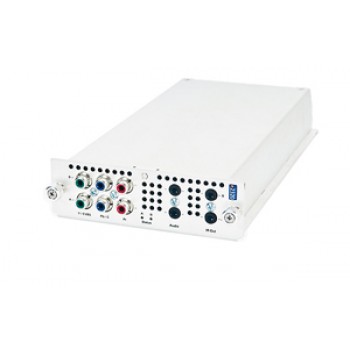

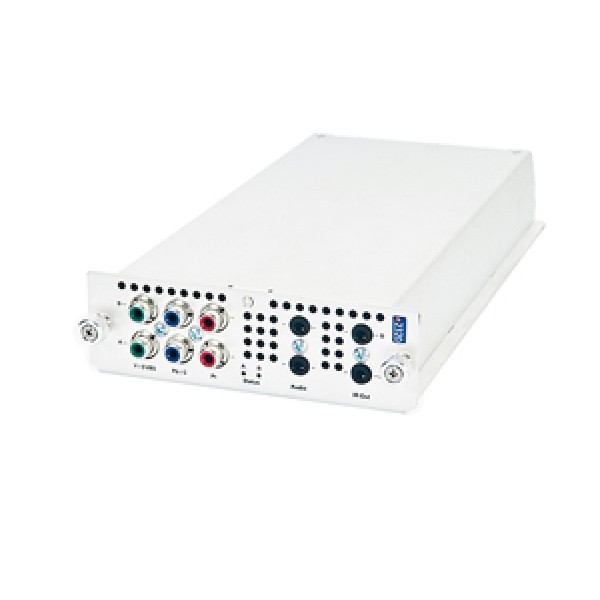

About: Exterity AvediaStream e2320 Dual Channel SD MPEG-2-MPEG-4 H.264 Encoder

The AvediaStream e2320 encoder streams video (e.g. news, sports entertainment, educational) channels over your existing network. It encodes and distributes content from a wide range of sources such as DVD Players, set-top boxes and digital cameras to an IP network. The e2320 is a dual encoder so can stream simultaneously from two independent video sources.

Outputs MPEG-2 Transport Streams over UDP or RTP as IP multicast or unicast
Dual encoder in single blade for cost-effective installations
MPEG-2 or H.264 video encoding
SD or Sub-SD encoding
MPEG-1 Layer II audio encoding
Video input options: Composite, SD Component, RGBS, S-Video (adaptor required)
Audio Input Unbalanced Stereo
Hot swap blade allowsquick and non-intrusive upgrade to existing installations using Exterity chassis options (c1101, c1103, c1210)
Embedded system for high reliability and low power consumption

Model: avstr-e2320
