About: FieldCast Adapter Four

Adapter Four is the bridge between FieldCast fiber optic infrastructure and opticalCON Quad fiber optic cable assemblies, enabling you to migrate to FieldCast without having to sacrifice your old opticalCON cable drums. With Adapter Four you can connect opticalCON Quad cable to FieldCast 4Core Chassis Connector or Adapter Cable. You even can connect to Coupler Cable and cascade FieldCast and opticalCON for longer distances!

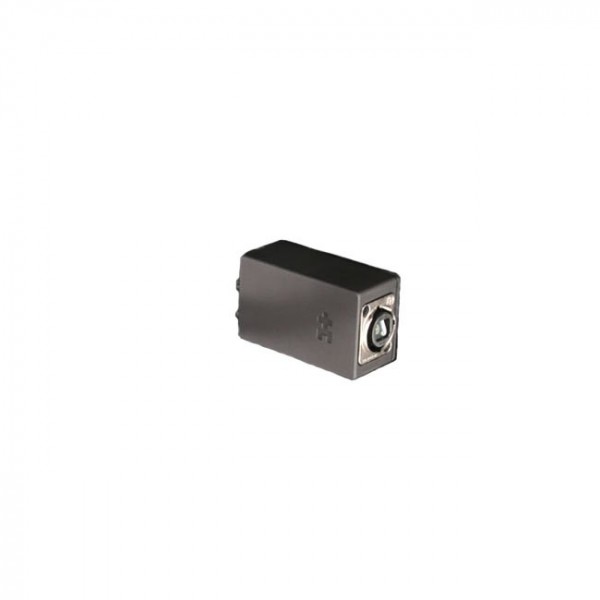

Adapter Four is the brother of Adapter Three. It uses the same aluminum housing with its integrated 1/4" insert but now it features a Neutrik OpticalCon Quad chassis connector and, at the end of the meter long cable, a FieldCast 4Core Cable Connector. If you own or rent Neutrik opticalCON Quad cable assemblies, Adapter Four enables you to connect them to FieldCast 4Core Chassis Connector and 4Core Adapter Cable, or, using 4Core Coupler Cable, put them in cascade with FieldCast 4Core Main Cable. Inside of the box Adapter Four uses four generic LC connectors that tap into the back of a factory standard Neutrik opticalCON Quad chassis connector. There's a single mode and a multimode version available, each with its own color coded rings, yellow for single mode and aqua for multimode, for easy identification.

Specifications
milled out aluminum case, pearl blasted, black anodized
Neutrik opticalCON Quad connector
1 meter cable outlet, tactical cable with pull relief
FieldCast 4Core male cable connector with color coding
4xLC (PC) connection to back of opticalCON Quad connector
available in SM (single mode) and MM (multimode)
1/4" steel insert in center of back plate, 2 M3 taps 47 mm. apart
comes with detachable belt clip and fixing screws
dimensions 75mm x 45mm x 33mm.
weight 280 grams
