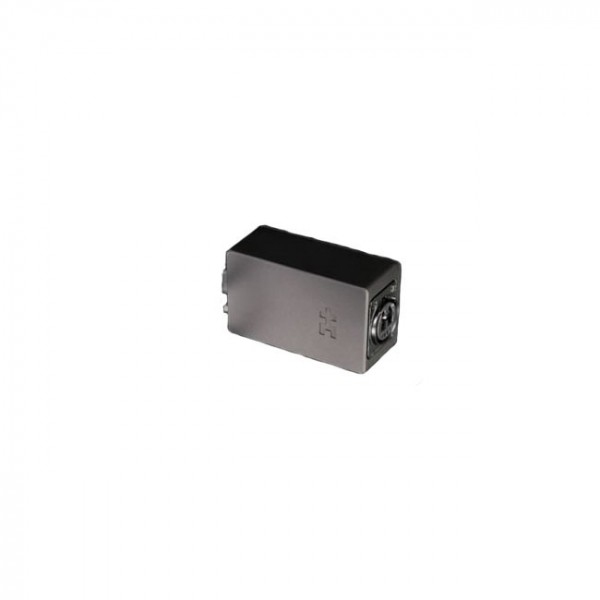

About: FieldCast Adapter Three

Adapter Three bridges FieldCast fiber optic infrastructure and opticalCON Duo fiber optic cable assemblies, enabling you to migrate to FieldCast without having to sacrifice your old opticalCON cable drums. With Adapter Three you can connect any opticalCON Duo cable to FieldCast 2Core Chassis Connector or Adapter Cable. You even can connect to Coupler Cable and cascade FieldCast and opticalCON for longer distances!

Robust milled out aluminium enclosure, pearl blasted and black anodized.
Features a Neutrik opticalCON Duo™ chassis connector on one side, and a 1 meter cable outlet with FieldCast 2Core connector on the other side.
The adapter accepts opticalCON Duo cable connectors, whereas the cable outlet connects to FieldCast 2Core Chassis Connectors, making it possible to use opticalCON cable assembles in FieldCast infrastructure environments.
With its LC Duplex connectors the cable outlet directly taps into the back side of the opticalCON chassis connector, so no extra adapter inside adding unnecessary attenuation.
Enclosure contains 1/4" steel insert to mount on tripod, rig, arm etc., and also has two extra M3 taps for attaching the adjustable belt clip.

Specifications
milled out aluminum case, pearl blasted and anodized
black Neutrik opticalCON Duo connector IP65
1 meter cable outlet, tactical cable with pull relief
FieldCast 2Core male cable connector with color coding
LC Duplex (PC) connection to back of opticalCON Duo connector
available in SM (single mode) and MM (multimode)
1/4" steel insert in center of back plate, 2 M3 taps 47 mm. apart
comes with detachable belt clip and fixing screws
dimensions 75mm x 45mm x 33mm.
weight 280 grams
product code: br010
