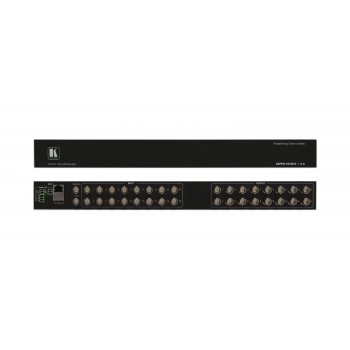

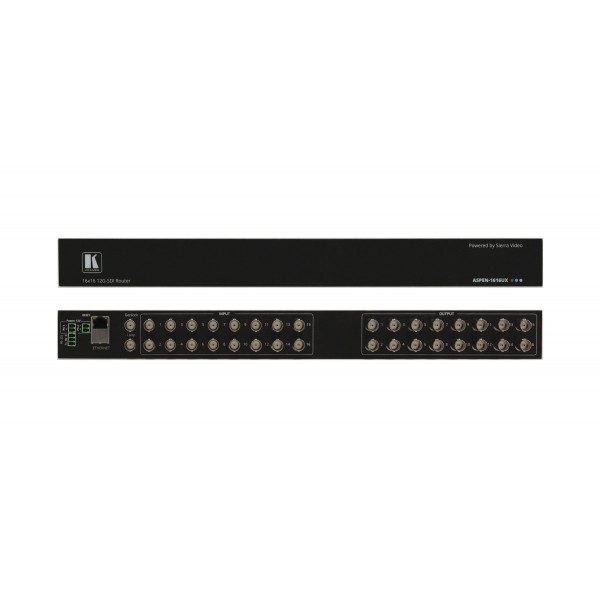

About: Kramer ASPEN-1616UX 12G-SDI Matrix Switcher

Kramer ASPEN-1616UX 12G-SDI Matrix Switcher is a high–performance matrix switcher offering 16 12G SDI inputs to 16 12G SDI outputs with a maximum resolution of 4K@60Hz (4:2:2). Features Kramer Equalization & reKlocking Technology that rebuilds the digital signal to travel longer distances.

Extended–Reach Input Extension Input signal equalization and output signals reclocking to gain extended–reach signal extension. Using high–quality coaxial SDI cables, supports extension of up to 300m (984ft) for SD signals; 200m (656ft) for 1.5G HD signals; 100m (328ft) for 3G and 6G HD signals; 80m (260ft) for 12G 4K signals. Note: Reach depends on signal resolution, and quality of copper cable used. Reach extension performance may vary while using coaxial cables that are not high–quality.

Features:

SDI signals up to 12G
Multi–Standard Operation SDI, HD–SDI, 3G HD–SDI, 6G and 12G SDI
Depth 4 inches
Genlock clean switching and versatility
HDTV Compatible
