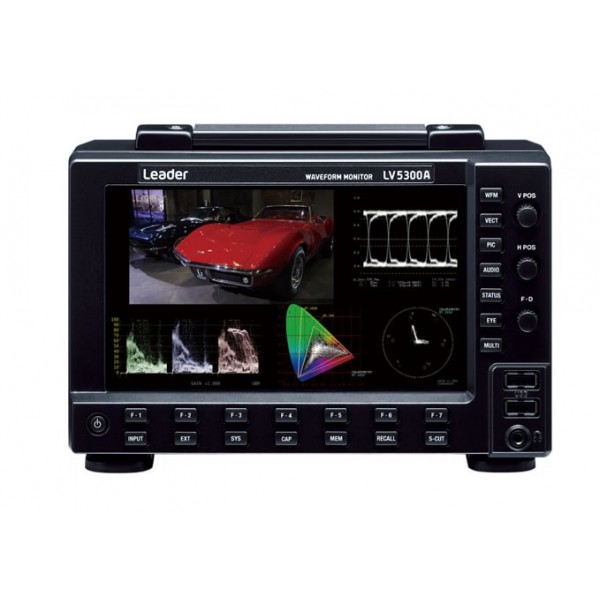

About: Leader LV5300A SDI Waveform Monitor
Leader LV5300A SDI Waveform Monitor offering two SDI Inputs, Eye Pattern and Jitter Measurements in a compact waveform monitor and rasterizer family designed for 4K/UHDTV/HD/SD‐SDI video signals. The LV5300A is a waveform monitor with a 7‐inch touch screen display in a compact, short‐depth 3 RU enclosure. The LV5300A has a DC power input, which enables it to be used in locations where AC power supplies are not available. Moreover, the LV5300A can be battery-operated by installing a battery mount option. With its combination of touch screen, dedicated buttons and knobs, and user-defined screen layouts the LV5300A allows complex measurement and monitoring tasks to be quickly completed in almost any environment.Features:
Excellent operability with 7-inch full HD and touch panel function
Customizable layout means various items - such as video signal waveforms, vector waveforms, and pictures of input signals - can be laid out in any position with preferred size
SDI signal generation function can handle from HD-SDI to 12G-SDI
HDR signal level monitoring and level management at assumed luminance (Nits) in display, considering OOTF, are possible
Focus detection algorithm - called Focus Assist - is based on nonlinear super-resolution technology; accordingly, focus with high sensitivity can be detected, even with low-contrast images
From SD‐SDI to 12G‐SDI full physical layer measurement of SDI signal - including eye pattern display and jitter - allows for detailed engineering evaluations of SDI signal paths
Model: LV5300A
Leader LV5300A SDI Waveform Monitor
- Brands Leader Electronics
- Product Code:LV5300A
- Availability:In Stock
-
$14,760.00
