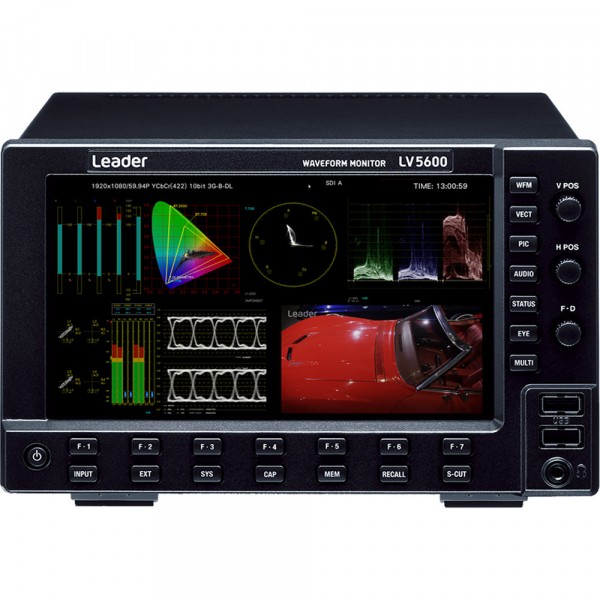

About: Leader LV5600 Waveform Monitor SDI/IP

Leader LV5600 Waveform Monitor SDI/IP offering its combination of touch screen, dedicated buttons and knobs, and user-defined screen layouts allows complex measurement and monitoring tasks to be quickly completed. Designed with the future in mind, the LV5600 addresses your current and evolving video and audio testing needs. LV5600 waveform monitor compatible with 4K/HD/SD-SDI signals and UHDTV/HD/SD IP signals. The LV5600 features a 7-inch touch screen display in a compact 3 RU enclosure with built-in AC power supply, and supports a variety of SDI signals up to 12G-SDI as well as video over IP.

Features:

Supports various signal inputs
It supports SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI single link, 3G-SDI dual link and quad link, HD-SDI quad link, 10G/25G IP (video over IP)
Excellent operability
Eye pattern display
From SD-SDI to 12G-SDI
In the physical layer measurement of the SDI signal some eye pattern display, jitter display is possible.
Customizable layout
Various items such as video signal waveforms, vector waveforms, and pictures of input signals can be laid out in any position with your favorite size.
SDI signal generation function can handle from HD-SDI to 12G-SDI
JPEG XS
Analyze SMPTE ST 2110-22 (JPEG XS) streams, decode HD and 4K
HDR signal level monitoring and the level management at the assumed luminance (Nits) in a display considering OOTF are possible.
Focus Assist
