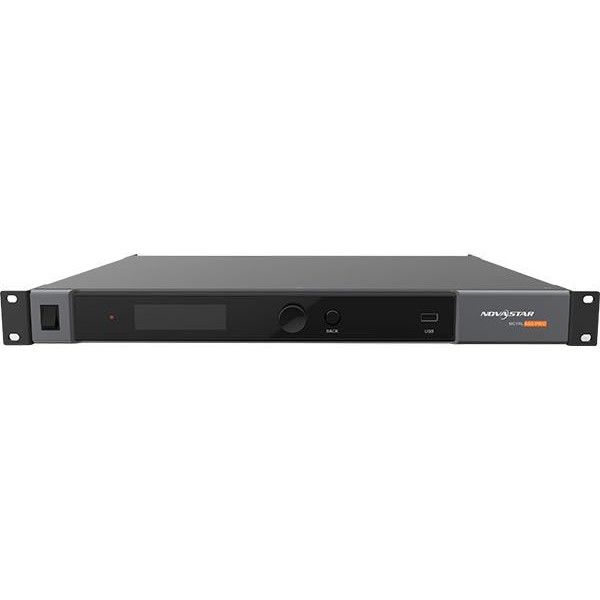

About: NovaStar MCTRL660 PRO LED Display Controller

NovaStar MCTRL660 PRO LED Display Controller has a loading capacity of up to 1920×1200@60Hz. It allows users to customize resolutions to configure ultra-large screen width and heights.

MCTRL660 PRO has a loading capacity of up to 1920×1200@60Hz. It allows users to customize resolutions to configure ultra-large screen width and heights.

Features

Product Type: Video Controller
Input Resolution: 1920×1200 @60Hz
Capacity: 2.3 Million Pixels
Control Method: USB, ETHERNET, GENLOCK
Video Interface: HDMI/DVI/3G-SDI
Video Format: RGB444/YCbCr444/YCbCr422/YCbCr420
Audio Interface: HDMI/3.5mm audio connector

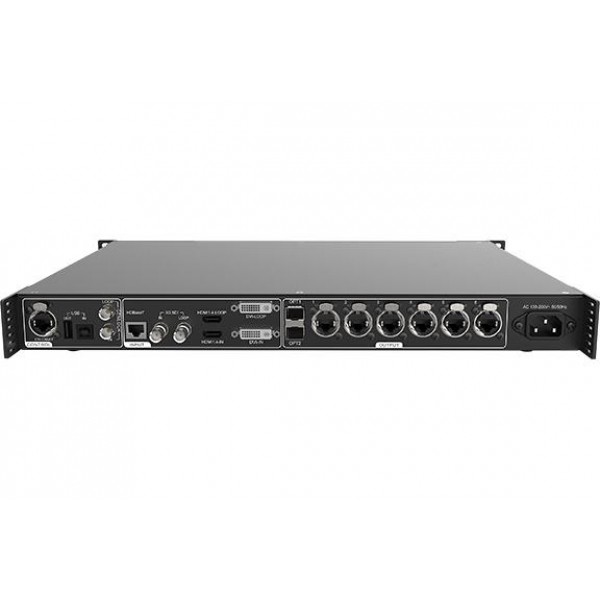

Output: 6× Gigabit Ethernet ports, 2× 10G optical ports
Bit Depth Of Video Resource: 8/10/12-bit
Input Resolution: 1920×1200 @60Hz
Cascading Supported
Independent gamma adjustment of RGB
A low latency of less than 1 frame (≤ 10 lines)
Dual working modes: sending card and fiber converter
One-click backup and quick recovery
Image flip/mirroring stage effects
Auto LED screen configuration
Web control
Pixel level brightness and chroma calibration
Monitoring of inputs
Certification: CE, ROHS, FCC, UL, EAC

Model: NovaStar-MCTRL660-PRO

NovaStar MCTRL660 PRO LED Display Controller

Brands NovaStar
Product Code:NovaStar-MCTRL660-PRO
Availability:In Stock
